MB Instrument Pre

MB Instrument Pre

Product code: MBA120008Y

After many requests from players worldwide, Markbass is now proud to offer its amazing onboard preamp for your bass. It will allow you to cover any of your EQ and tone shaping needs and  tailor your sound to perfection.

The MB INSTRUMENT PRE has been created after several tests and built with the best components on the market.
We concentrated all our know-how into this ultra-compact circuit and chose the right frequencies for the best sound reproduction.
Its tone control circuits were designed not only to enhance these frequencies but to give an amazing unique and rich response when you boost as well as you cut them whilst always offering a very clean and focused bass tone with extreme settings without losing tone details in the whole frequency range. Furthermore, the circuits were developed to offer fairly subtle differences of volume when you switch from passive to active and vice-versa: a very well appreciated feature by all musicians.
It offers a wide range of wiring/application options and it works either at 9V or 18V, with a very low power consumption for an exceptionally long battery life.

> key points

> ultra-compact size
The MB INSTRUMENT PRE has a very compact size, allowing to easily fit into most instrument control cavities.

> best sound reproduction
This preamp provides always an amazing sound reproduction also with extreme settings, without losing your instrument tone details in the whole frequency range.

> wide range of wiring/application
It can be used in many configurations, for example:

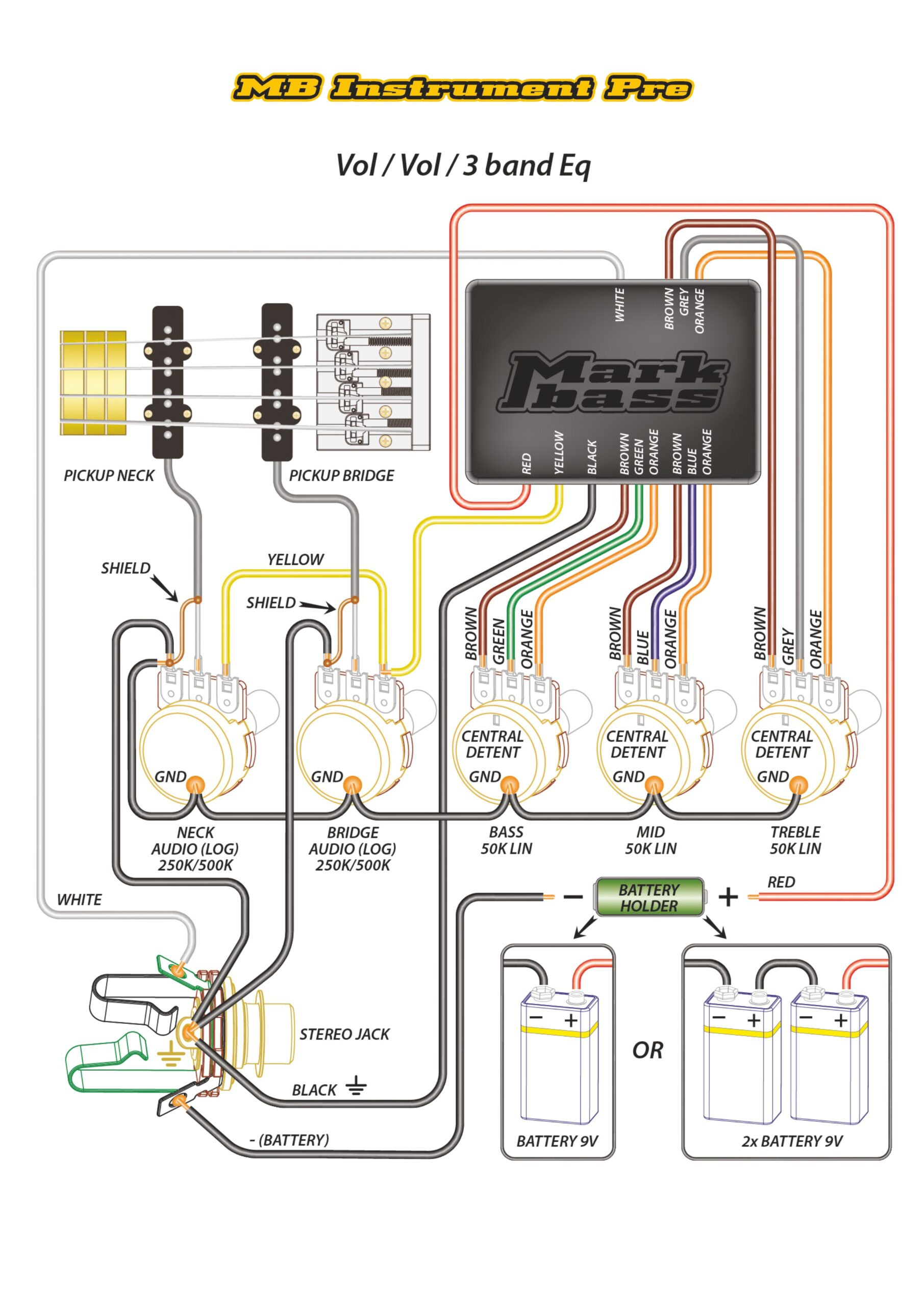

VOL/VOL/3 band EQ

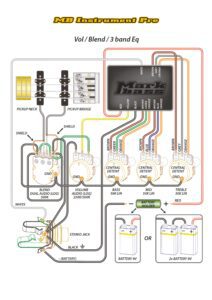

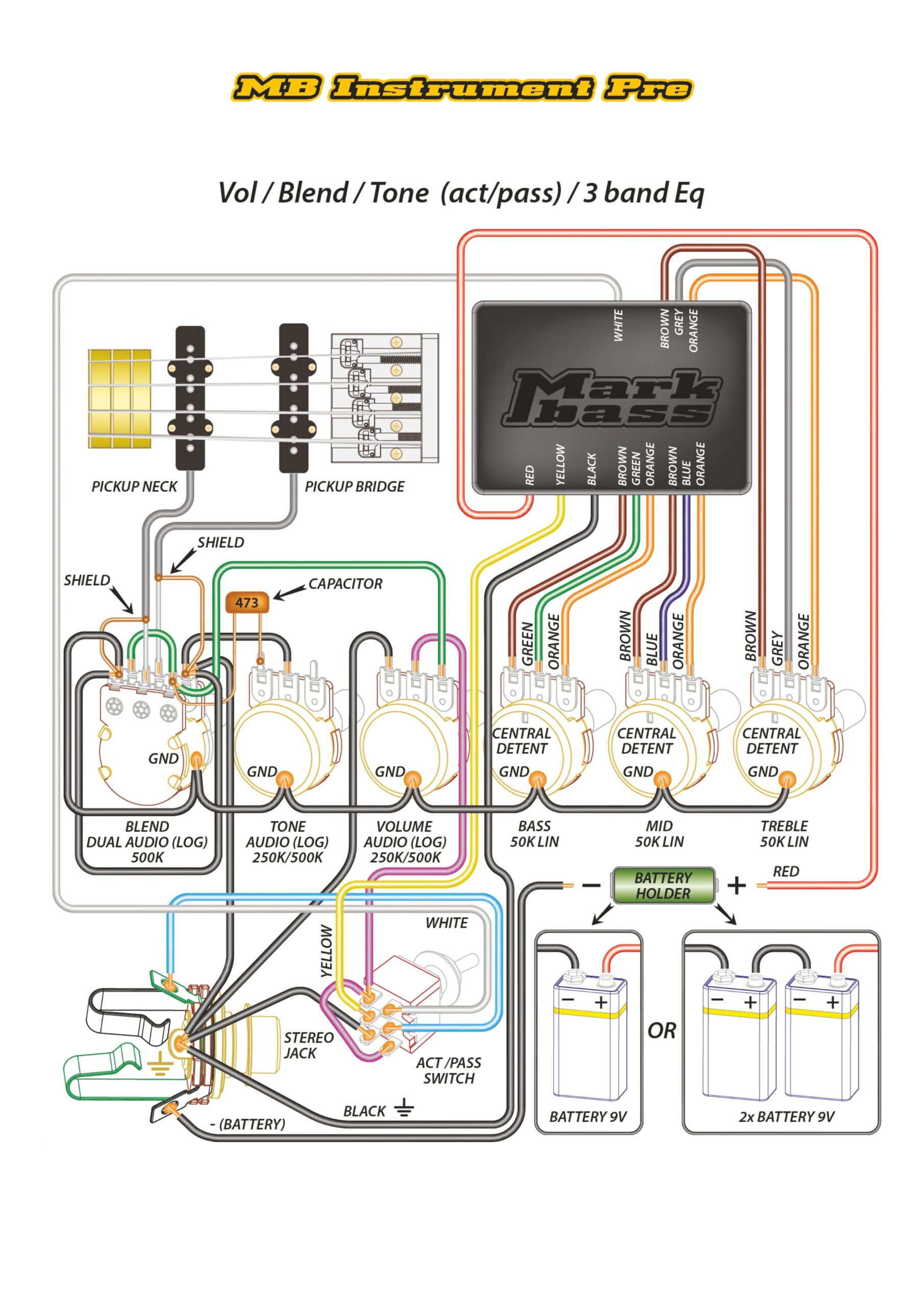

VOL/ BLEND/TONE (active/passive)/3 band EQ
and many others.

> 9V or 18V, low power consumption
The MB INSTRUMENT PREAMP works either at 9V or 18V (one or two 9V battery) and it has a very low consumption (about 700 uA with 9V supply) offering an exceptionally long battery life.

No specifications available at the moment

Technical Features


Impedance 1.1 Mohm

EQ Controls


Power Supply

9V or 18V (2x9V)

Power Consumption

about 700 uA (with 9V supply)

Dimensions (w/d/h)

1.85″ x 1.26″ x 0.39″ | 47mm x 32mm x 10mm


35 g / 0,08 lbs
