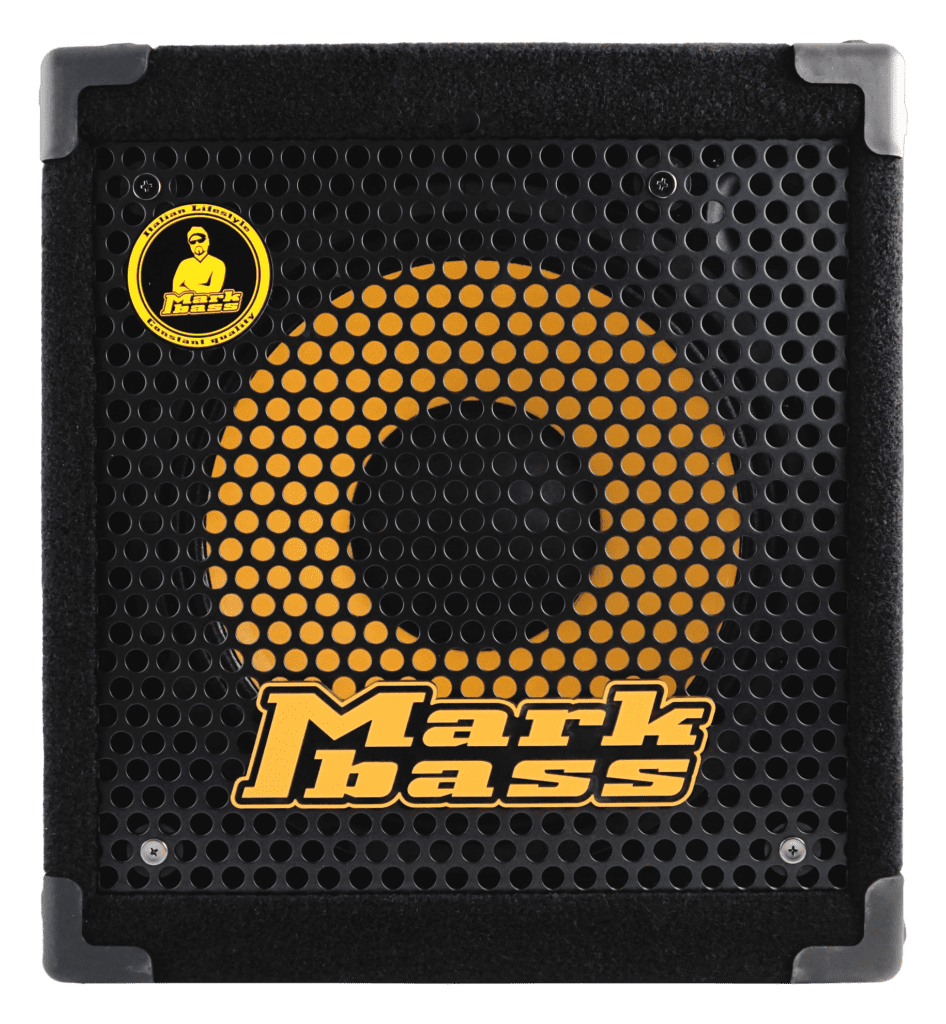

MINI CMD 121P IV

MINI CMD 121P IV

Product code: MBC105053Z

Our flagship combo Mini CMD 121P has changed the bass amp market forever. Never have bassists been able to get such great tone and volume from such a light and portable amp. This new version with Little Mark IV Combo head features the new bi-band limiter, a MUTE switch and the 3-way switch that includes the options of Flat, Scooped or FSW. As for previous version it can be easily upgraded to a powerful 2x12" 500W rig with the addition of a New York 121 cabinet.


KEY POINTS

> UNPARALLED POWER/WEIGHT RATIO
After years from its initial release in the 2005, this combo continues to lead the pack when it comes to big sound from a small package. The sound that comes from this amp simply does not match what you see when you look at such a small cube.

> UPDATED 4 BAND EQ, OLD SCHOOL FILTER, 3 WAY SWITCH
Our updated 4 band EQ section features very effective controls allowing you to easily find the sound you want, boosting or cutting up to 16dB for each of the 4 bands to cover all the tonal nuances needed in any genre of music. Additionally the Old School filter cuts your high frequencies and gives a round and smooth tone. The 3 way rotary-switch allows you to choose between a super-balanced flat tone, a scooped preset that drops the mids while boosting the lows and highs - giving a superb slap sound, or lastly the 'FSW' option to control both mute and the Scooped EQ on demand by connecting an optional dual footswitch.

> BI-BAND LIMITER
Our new bi-band limiter responds faster and more dynamically to your playing than traditional limiters do and lets your high end "breathe" for a more natural sound. It makes our amp heads the best choice for anyone who enjoys a quick, punchy attack at high volumes.

> POWERFUL STACK WITH NEW YORK 121 EXTENSION CABINET
If you add the New York 121 to the Mini CMD 121P combo, you’ll have a 500W 2x12” stack able to fill a large venue with headroom to spare.

> TAKES UP VERY LITTLE ROOM ON STAGE
Even when stacked on a New York 121 cabinet (which has the same dimensions), this combo creates a footprint on stage of only 15” x 14”. You'll never have a problem fitting this rig on even the smallest of stages!

Specifications:

Additional information

POWER

Let's play

Technical Features

INPUTS

INPUT impedance: 1 Mohm, max. voltage: 9 Vpp
RETURN impedance: 22 Kohm, max. voltage: 10 Vpp

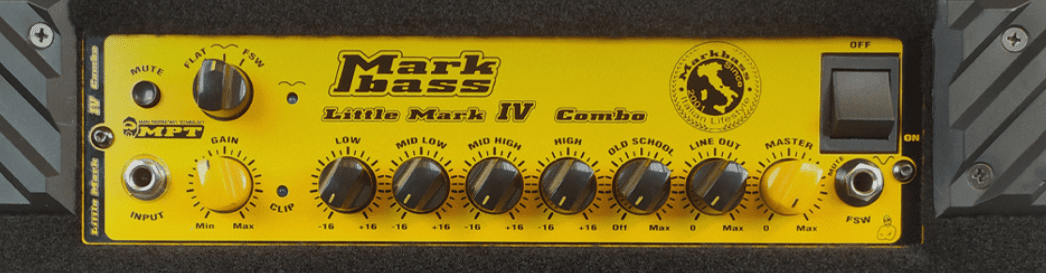

CONTROLS

GAIN –46 dB to +23 dB range
LINE OUT level control on front panel
PRE/POST EQ (for line out) switch on rear panel
GROUND LIFT switch on rear panel
MUTE SWITCH
MASTER VOLUME

EQUALIZATION
LOW: center frequency 68 Hz; level: ±16 dB
MID LOW: center frequency 360 Hz; level: ±16 dB
MID HIGH: center frequency 800 Hz; level: ±16 dB
HIGH: center frequency 10 kHz; level: ±16 dB
OLD SCHOOL: max cut range: 250 Hz – 20 kHz
3 WAY SWITCH: flat/scooped-mid/FSW

OUTPUTS

SEND EFFECTS: unbalanced, max. voltage 20 Vpp
TUNER OUT: unbalanced, max. voltage 2 Vpp
LINE OUT balanced XLR, max. voltage 20 Vpp
SPEAKER OUT: speakon/1/4” combo, 1/4”*

OTHERS

BI-BAND LIMITER
FOOTSWITCH (OPTIONAL): FLAT/SCOOPED-MID

OUTPUT POWER:

500W RMS @ 4 ohm, 300W RMS @ 8 ohm
POWER REQUIREMENT:
100V; 120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale)

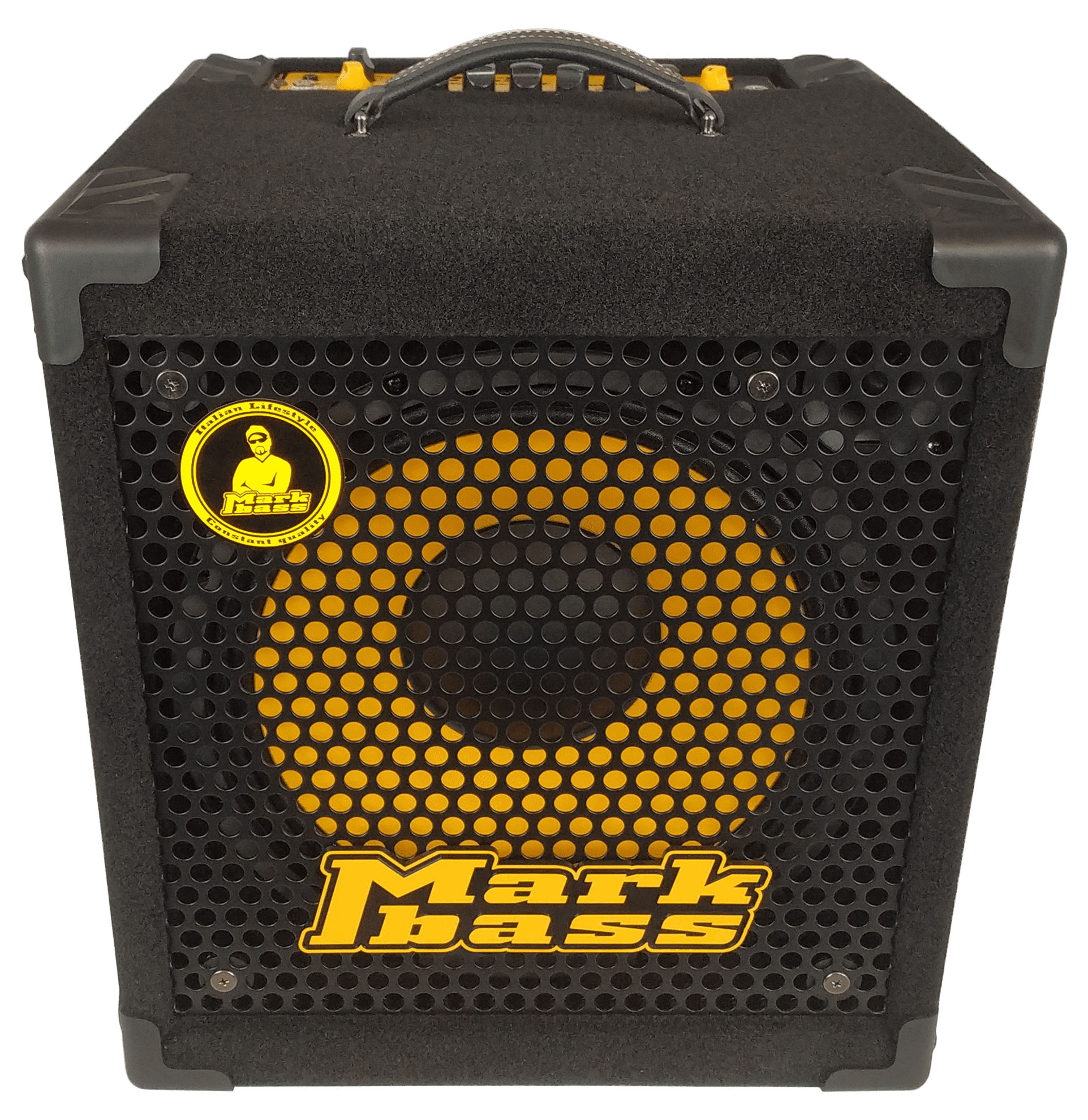

SPEAKER

1×12″

TWEETER

piego

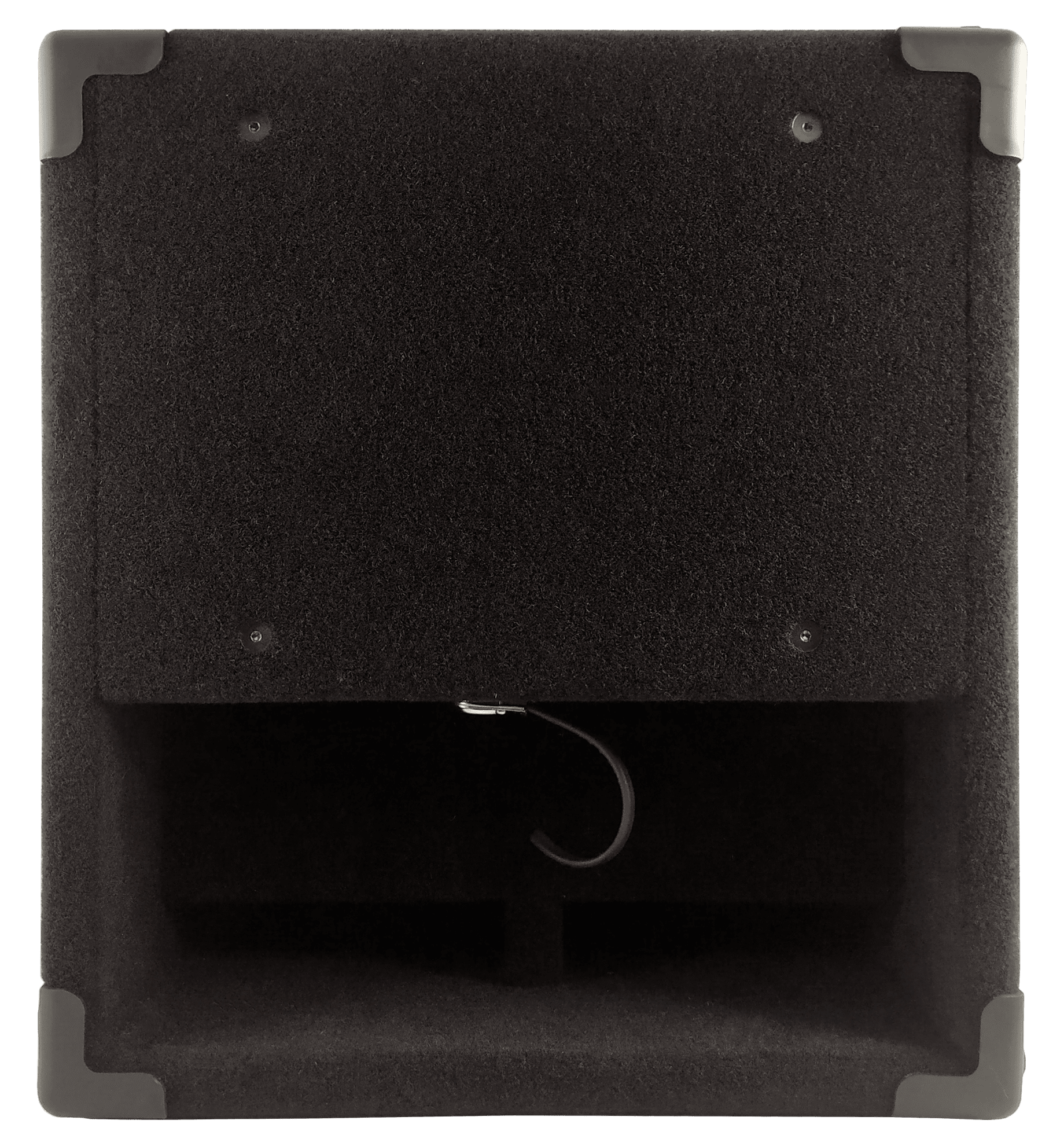

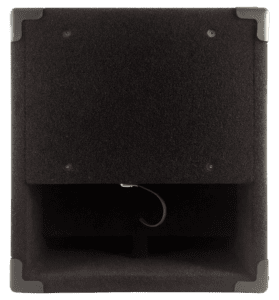

BASS REFLEX

rear

IMPEDANCE

8 ohms

SPEAKER POWER HANDLING

400W RMS (AES Standard)

FREQUENCY RESPONSE

45 Hz to 18 kHz

CROSSOVER FREQUENCY

3.5 kHz

SENSITIVITY

99 dB SPL

WEIGHT: 25.79 lbs / 11.7 Kg
WIDTH: 14.96 in. / 38 cm
HEIGHT: 16.73 in. / 42.5 cm
DEPTH: 14.17 in. / 36 cm
