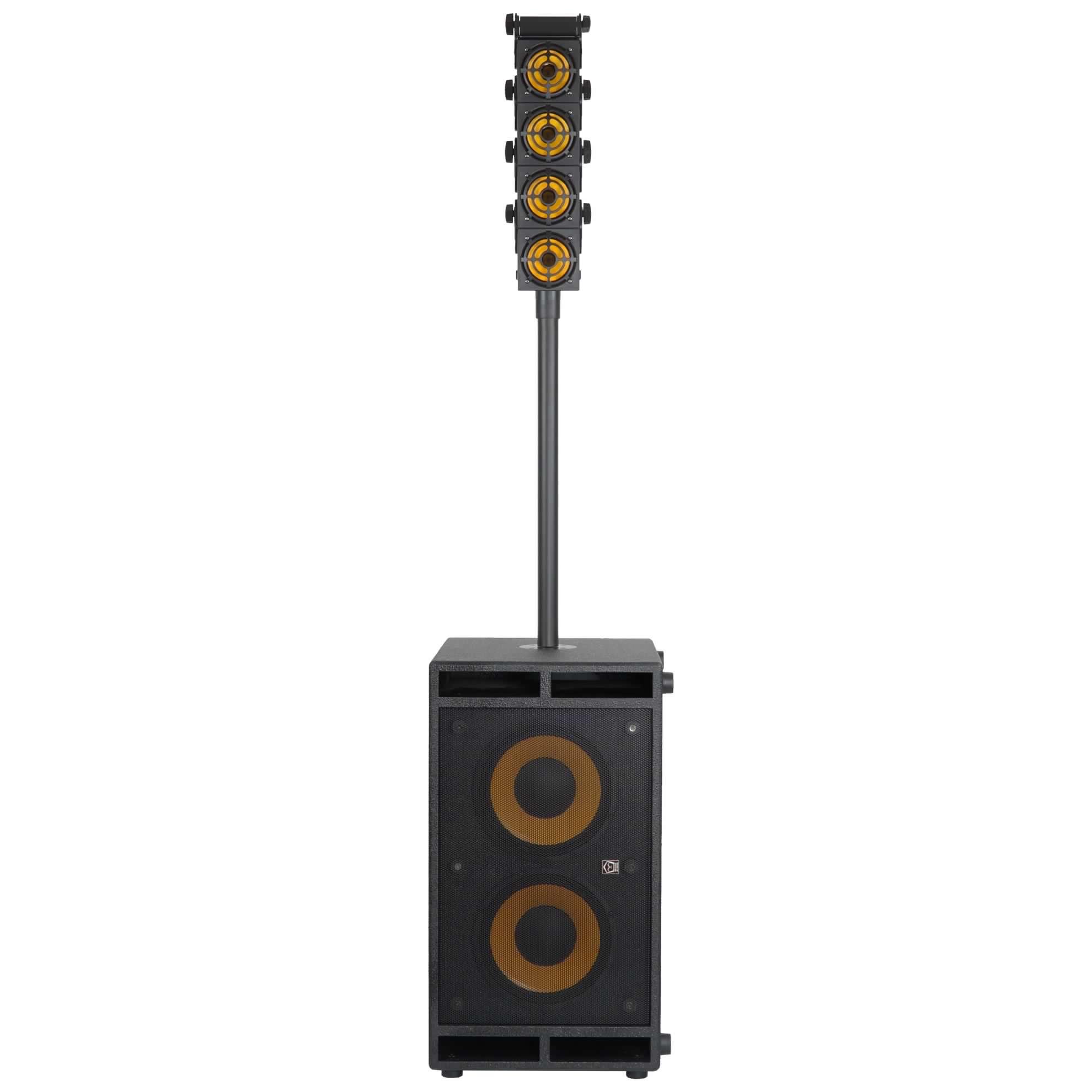

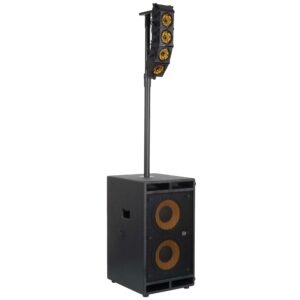

AC System 1

AC System 1

Product code: MAK156008Z

The AUDIO CHAIN is an innovative portable PA system-concept with outstanding, accurate sound! Chose the AUDIO CHAIN System that fits your needs, whatever the application: from small to large audiences, any kind of event or permanet installation. Let the audience hear your Music ai its Best! Always hear everyting, everywhere in the venue!

Thanks to its adjustable loudspeaker chain, the AUDIO CHAIN can fit for different application and configuration:

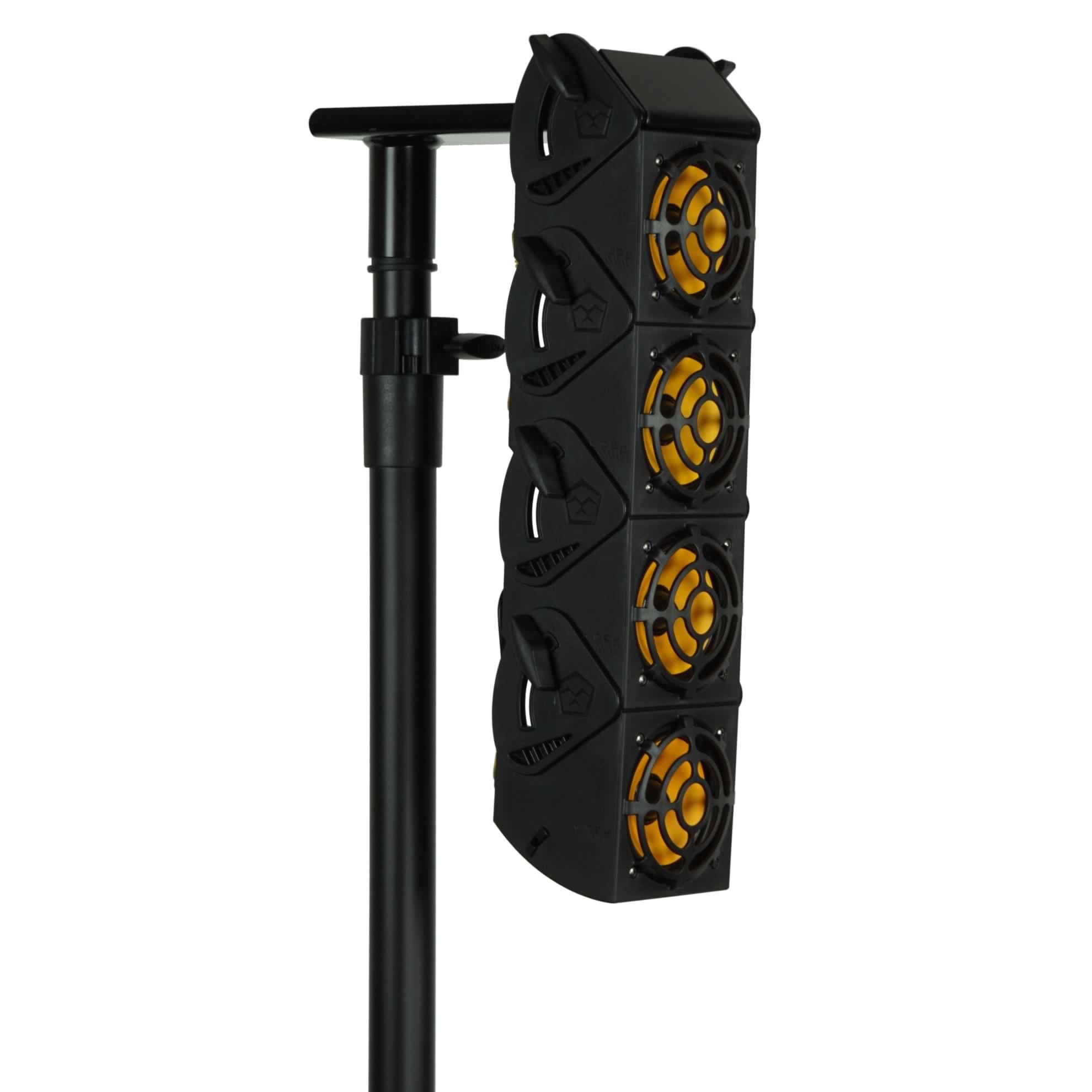

  • STRAIGHT The AC System accurately reproduces your Music offering many modular configuration options.
    You can set the AC System 1 and AC System 2 in a straight configuration, optimizing the height of the satellites column to have the chain lets you hear at the best every last detail.

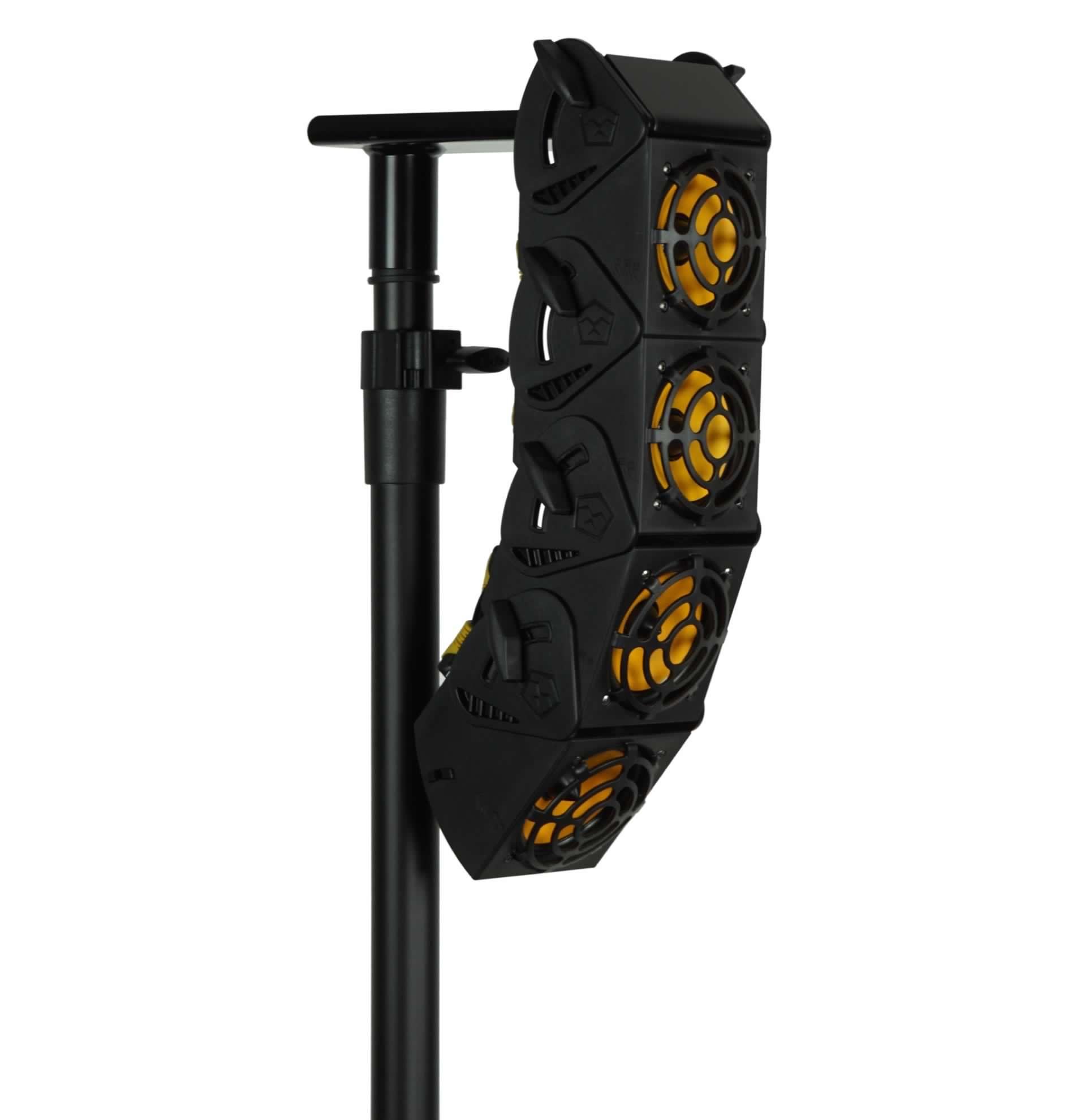

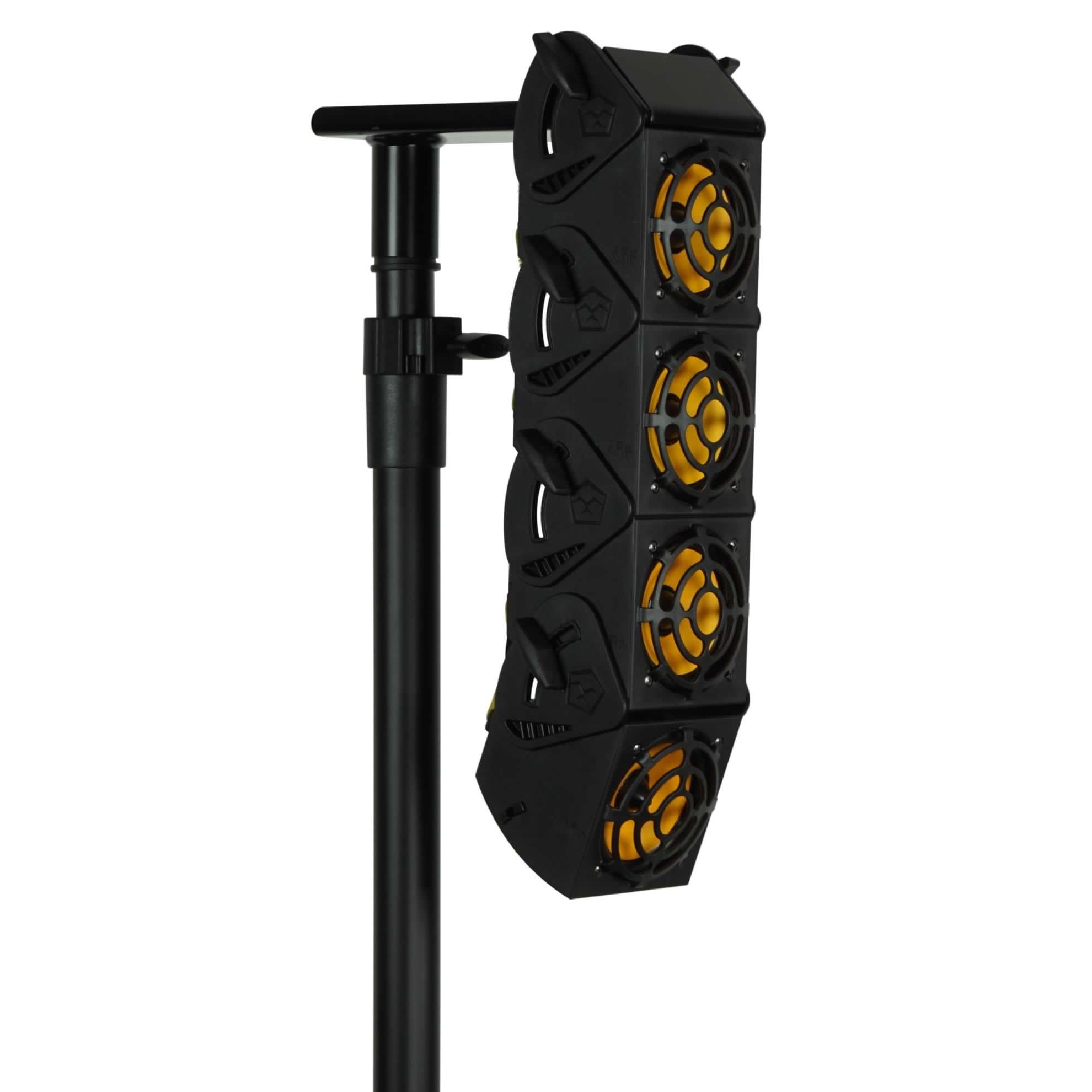

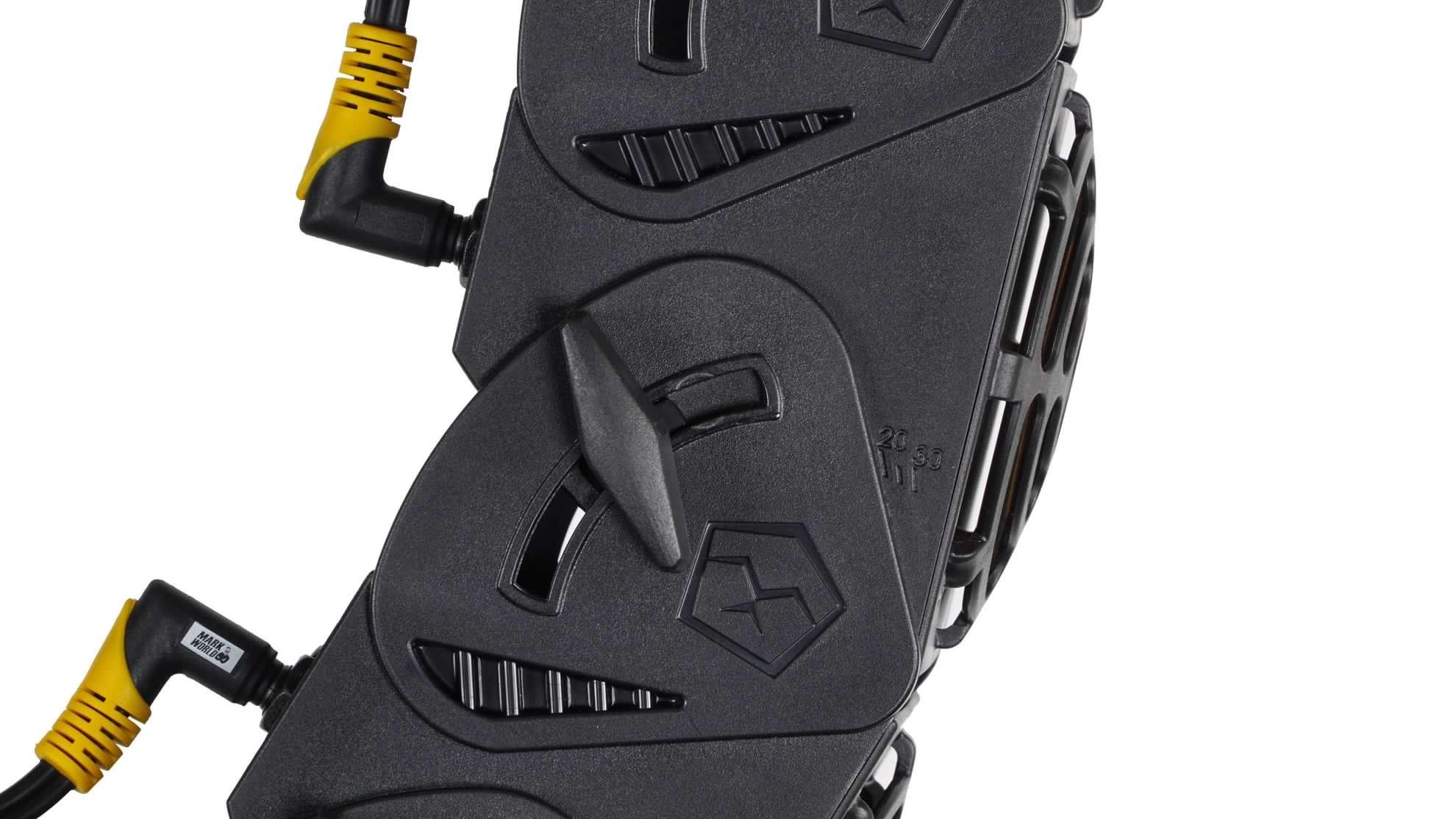

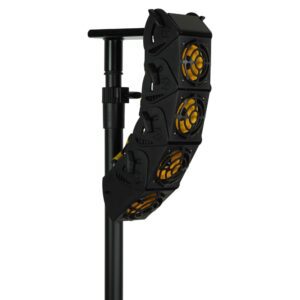

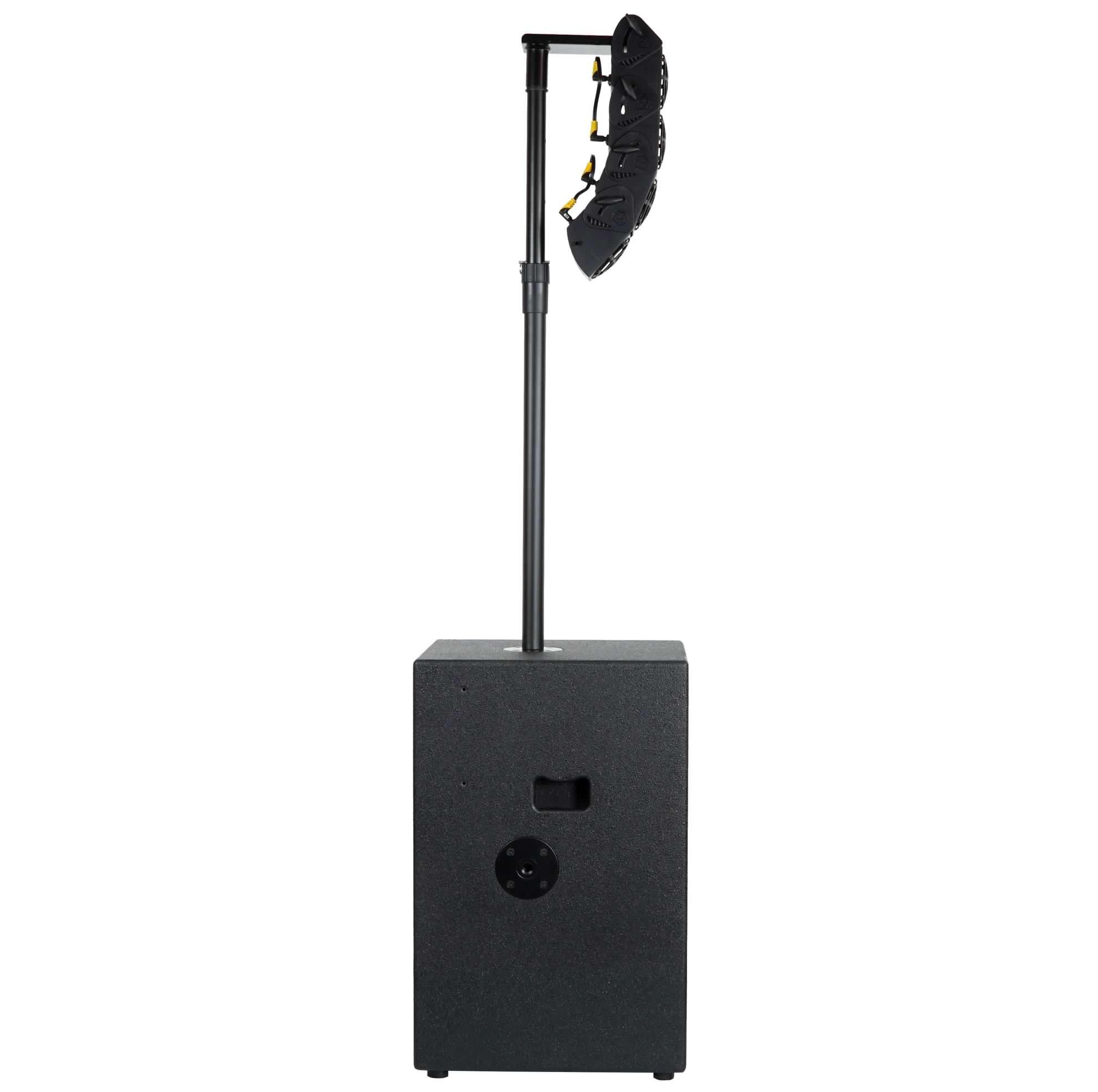

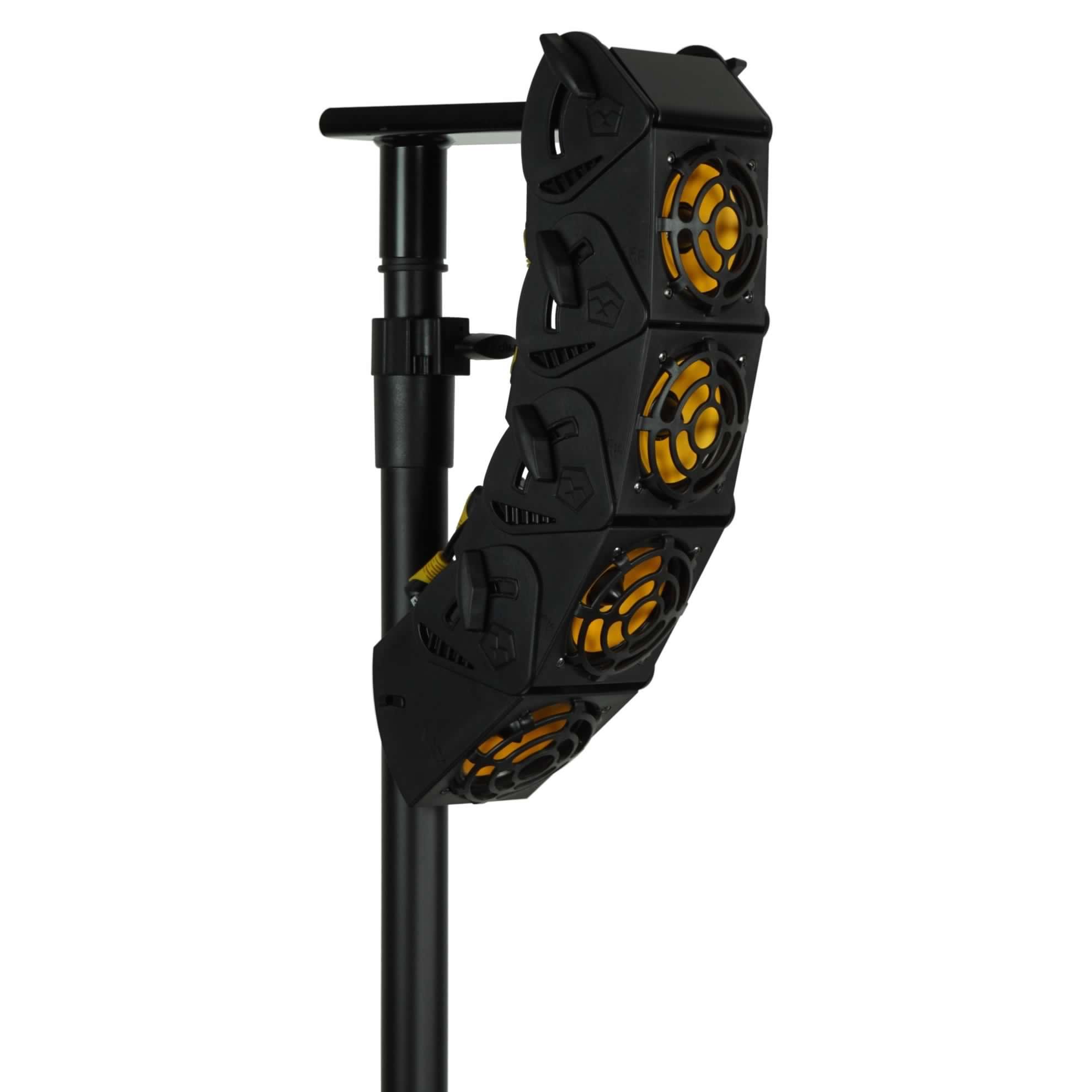

  • J SHAPE The AC System satellites chain design allows to angle each single AC1 from 0° to 30°, obtaining the optimal J-shape column configuration to offer a perfect listening experience. Hearing everything, everywhere properly enhances the performance and pleases the audience.
  • TRUSS MOUNT
  • WALL MOUNT

MAIN FEATURES:

  • TOTAL POWER 2.000 W
  • 126 dB max SPL
  • FREQUENCY RESPONSE 50 Hz - 20 kHz
  • 4x4" neodymium full-range woofer
  • 2x10" subwoofer
  • 90° x 30° slightly tilted pattern control
  • Innovative DSP processor
  • Modularity, pole mountable, easy to use and to transport
  • Adjustable shape (Straight, J-shape)

MULTIPLE APPLICATIONS:

  • ONE MAN BAND
  • SMALL BAND to BIG ORCHESTRA
  • PIANO BAR
  • CLUBS and DJ SET
  • HOME AND MOVIE THEATER
  • CONFERENCE HALL
  • CHURCHES
Specifications:

Additional information

POWER

WOOFER

SUBWOOFER

SPL

SIZE

SERIES

Let's play

Technical Features

ACOUSTICAL
  • FREQUENCY RESPONSE : 50 Hz – 20 Khz
  • MAX SPL : 126 dB
  • HORIZONTAL COVERAGE ANGLE : 90°
  • VERTICAL COVERAGE ANGLE : 30°

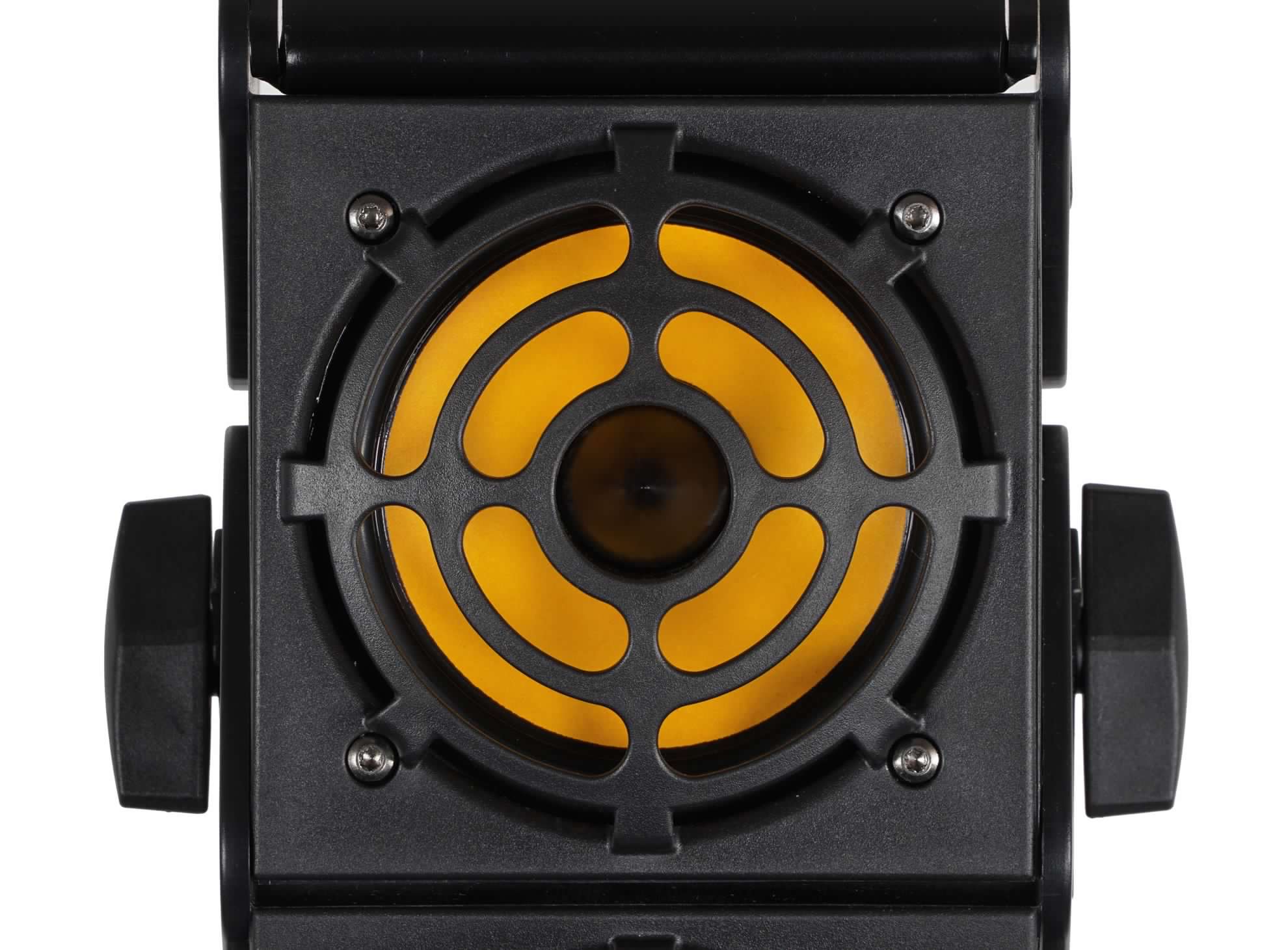

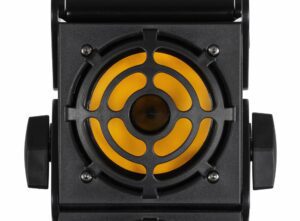

  • SATELLITES : 4 x 4”, 16 Ohm

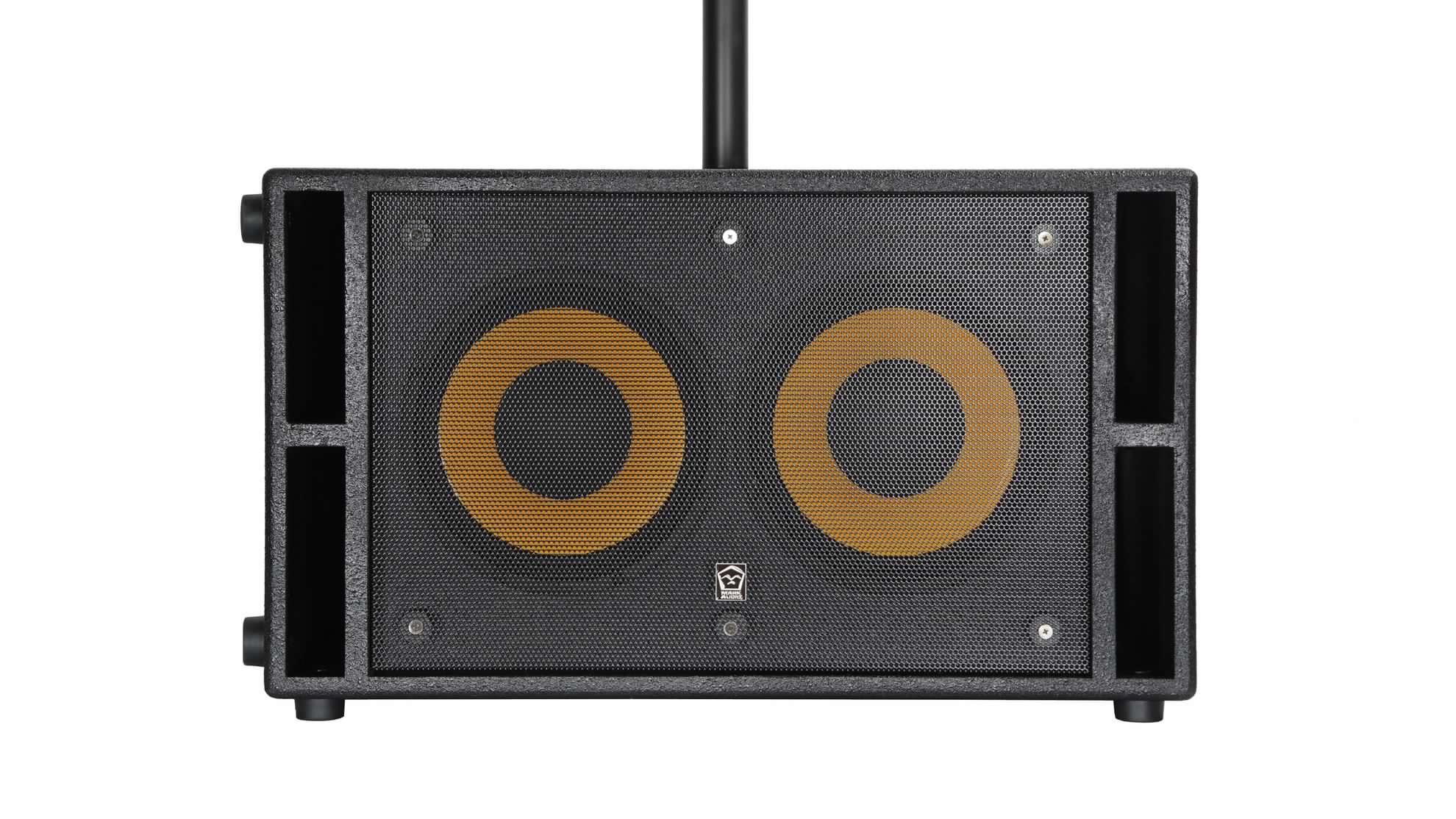

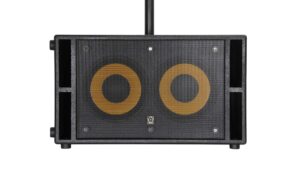

  • SUB : 2 x 10” , 4 Ohm

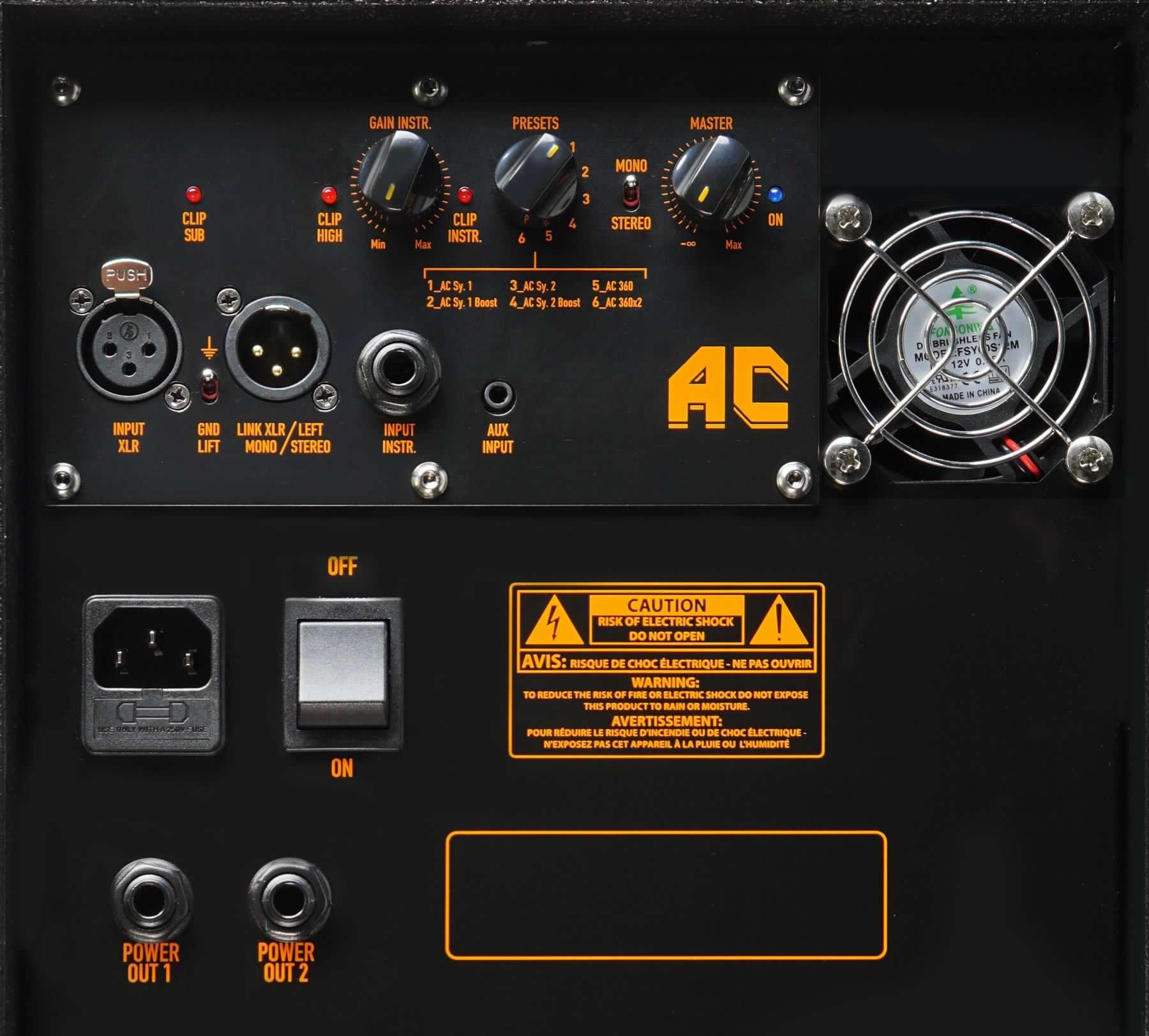

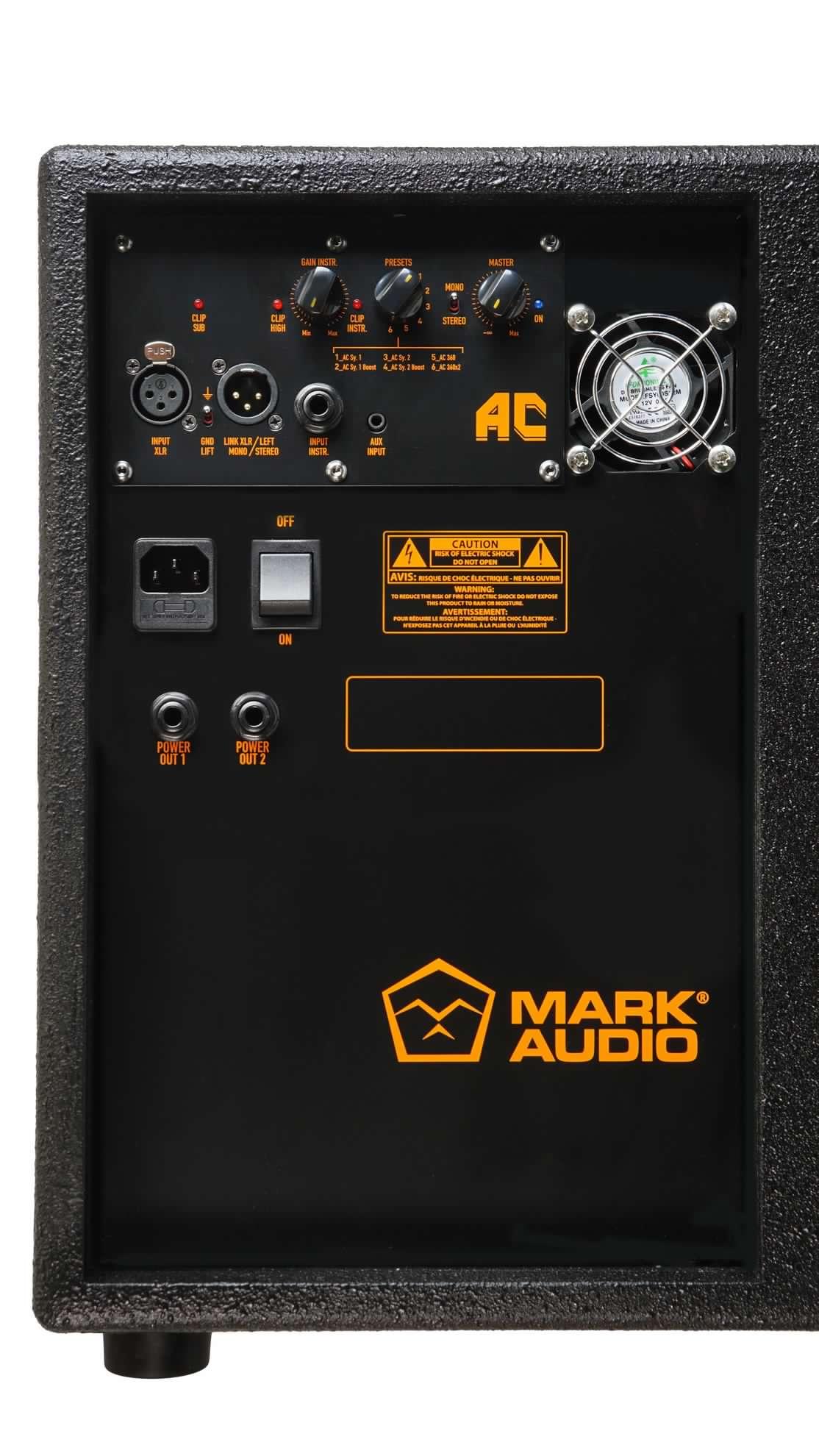

INPUT/OUTPUT
  • INPUT CONNECTORS : Jack – XLR female – AUX
  • OUTPUT CONNECTORS : XLR male
  • INPUT SENSITIVITY : -1,1 dBu (@ 1 kHz)
PROCESSOR
  • CROSSOVER FREQUENCIES : 180 Hz
  • PROTECTIONS : Thermal, rms
  • LIMITER : Soft limiter
  • CONTROLS : Volume, EQ
AMPLIFIER
  • TOTAL POWER (4ohm) : 2.000 W PEAK
  • HIGH FREQ. POWER (4ohm) : 1.000 W PEAK
  • LOW FREQ. POWER (4ohm) : 1.000 W PEAK
  • TOTAL POWER RMS (4ohm) : 1.000 W RMS
  • HIGH FREQ. POWER RMS (4ohm) : 500 W RMS
  • LOW FREQ. POWER RMS (4ohm) : 500 W RMS
  • COOLING : Convection
  • CONNECTIONS : VDE connector
CABINET
  • CABINET MATERIAL : Multiply poplar
  • HANDLES : 2 Side
  • POLE MOUNT/CAP : Yes
  • COLOUR : Black
PHYSICAL
  • SYSTEM HEIGHT (Vertical Sub) : min 143 cm (56′) / max 188 cm (74”)
  • SYSTEM HEIGHT (Horizontal Sub) : min 125cm (49″) / max 170cm (67”)
  • SYSTEM WIDHT : 43cm (17”)
  • SYSTEM DEPTH : 48cm (19”)
  • SATELLITES WEIGHT : 3 kg (6,6 lbs)
  • SUBWOOFER WEIGHT : 23 kg (50,7 lbs)
  • TOTAL WEIGHT : 26 kg (57,3 lbs)

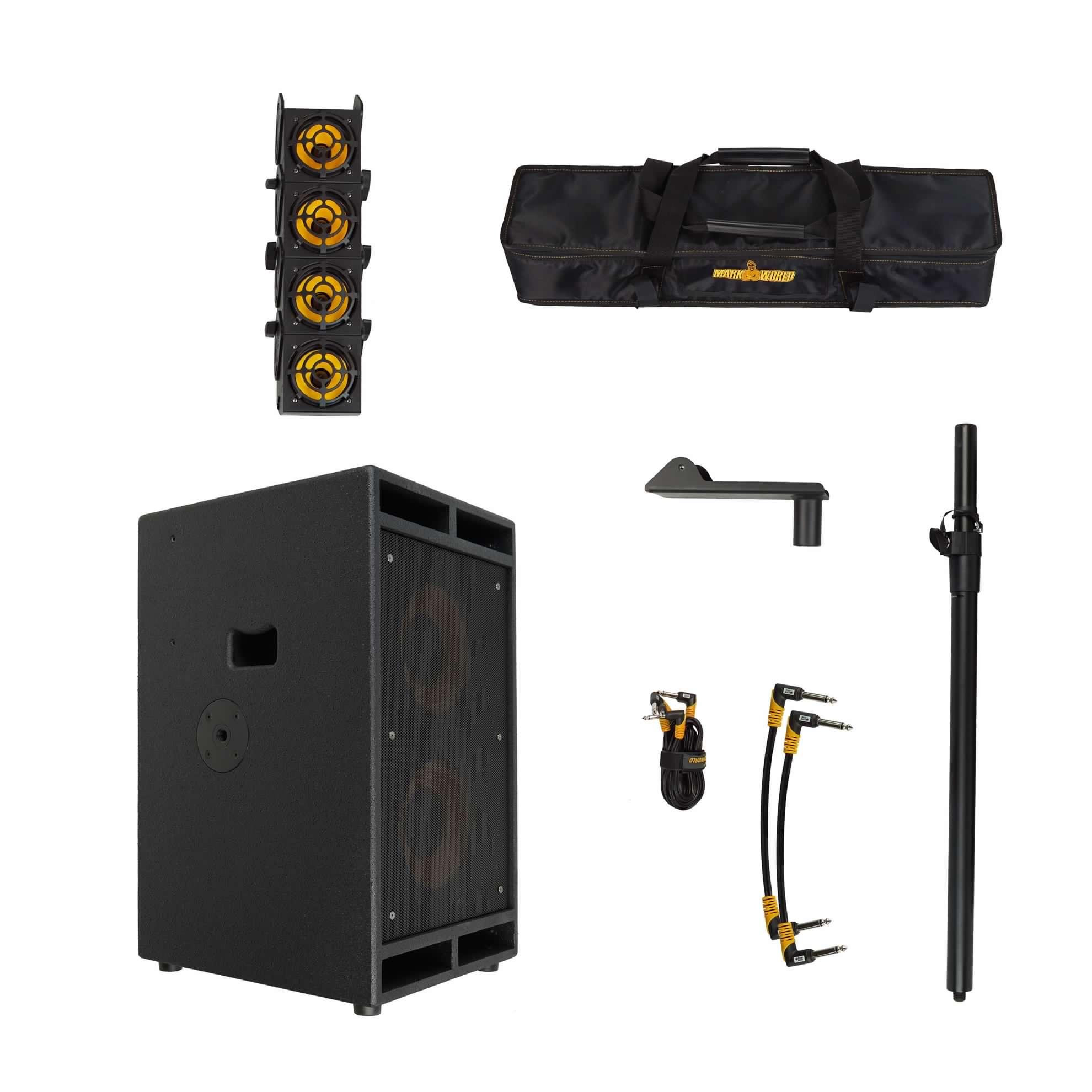

ACCESSORIES
  • OPTIONALS : Satellites transport bag included
  • OPTIONALS : Subwoofer cover optional
