ERGO System 2

ERGO System 2

Product code: MAK156013Z

ERGO SYSTEM

POWERFUL, VERSATILE and ULTRA-PORTABLE AUDIO SYSTEM

The ERGO is an innovative portable audio system-concept with outstanding, accurate sound!

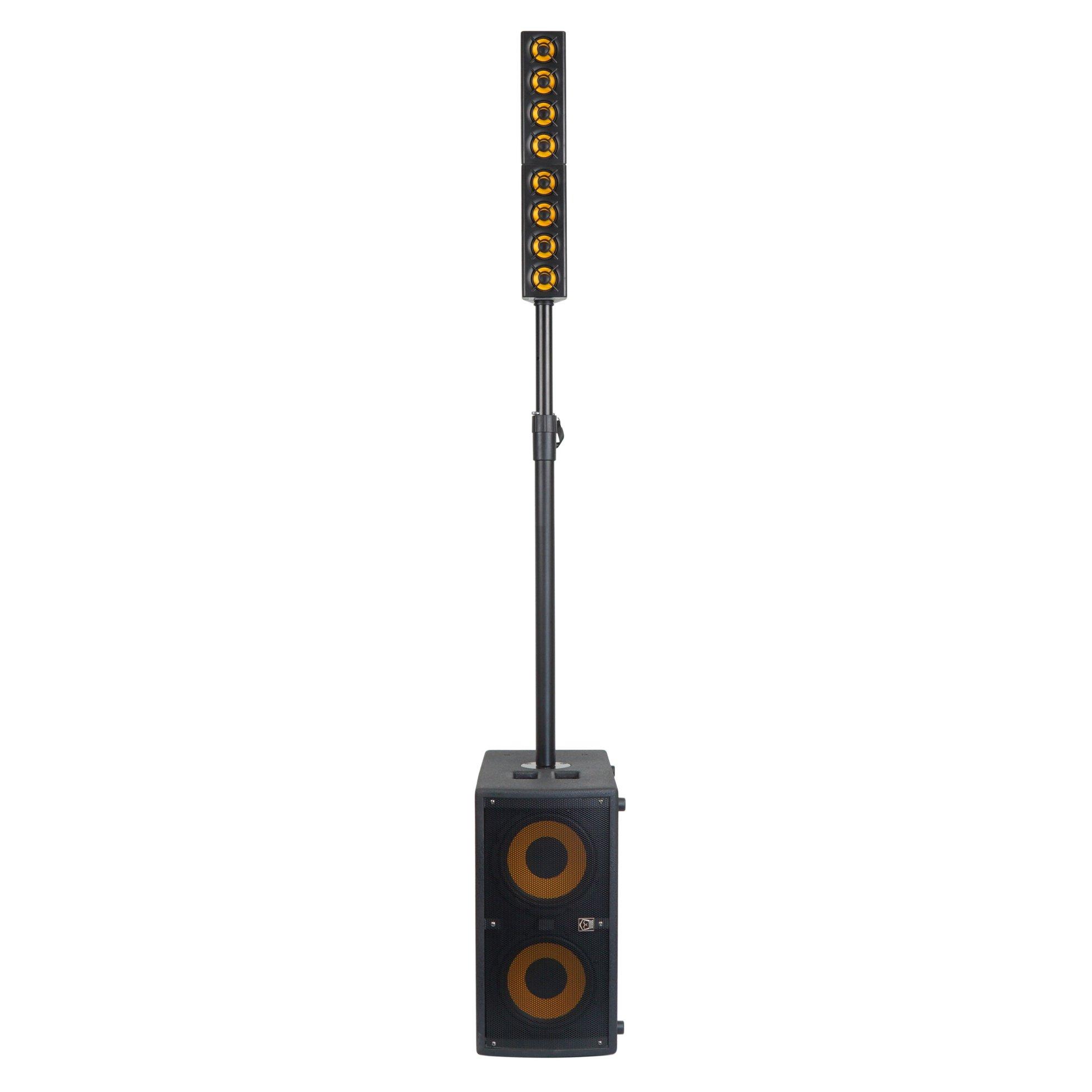

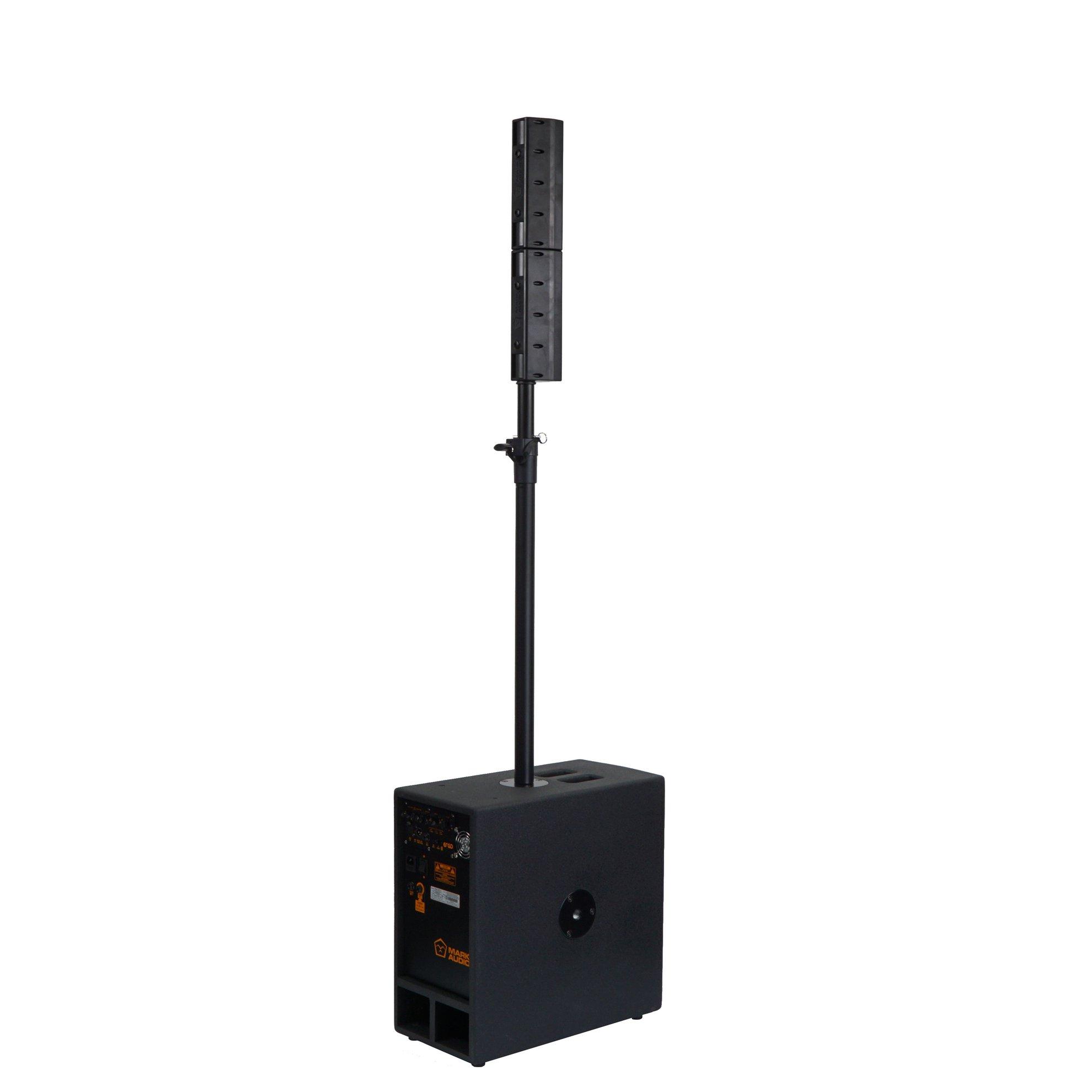

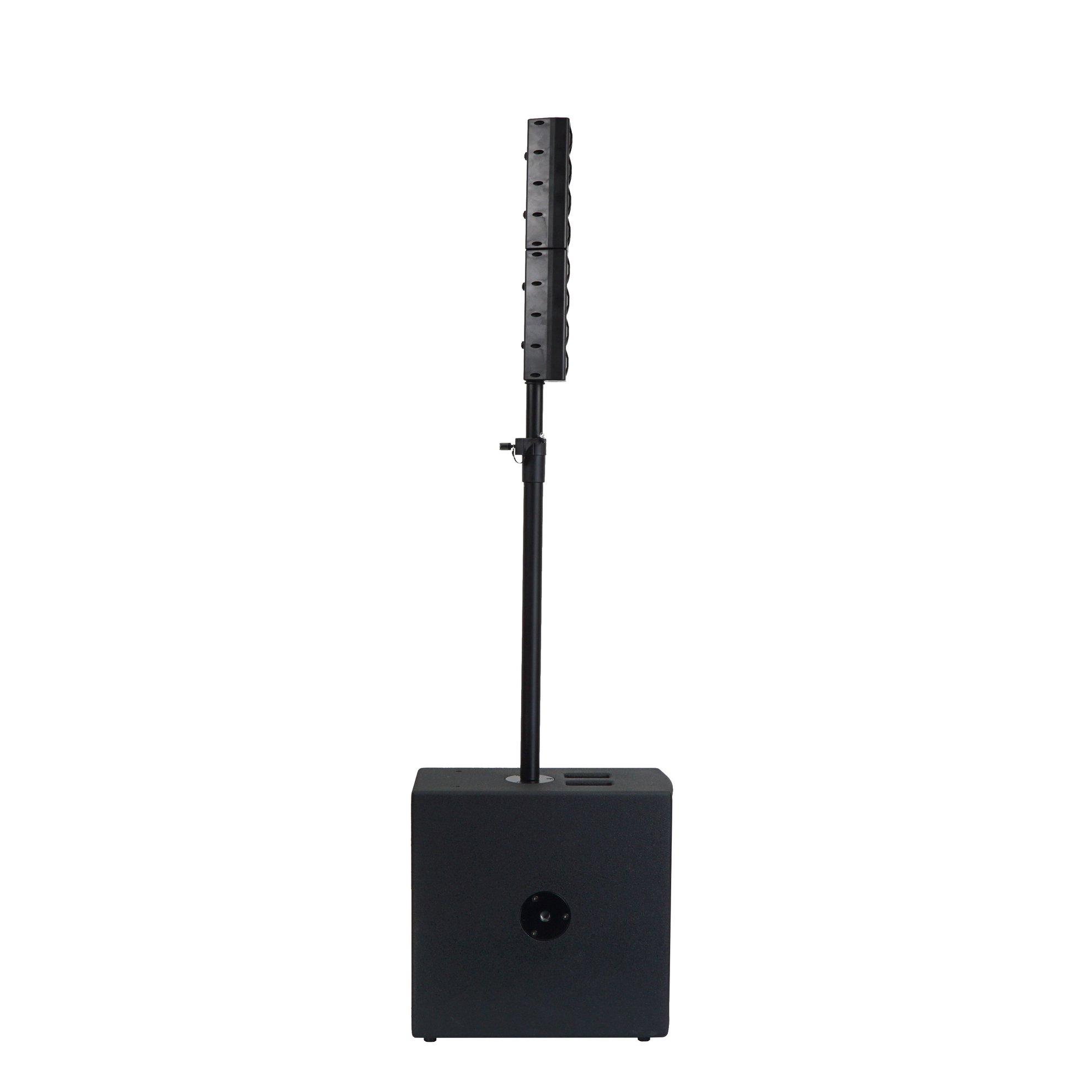

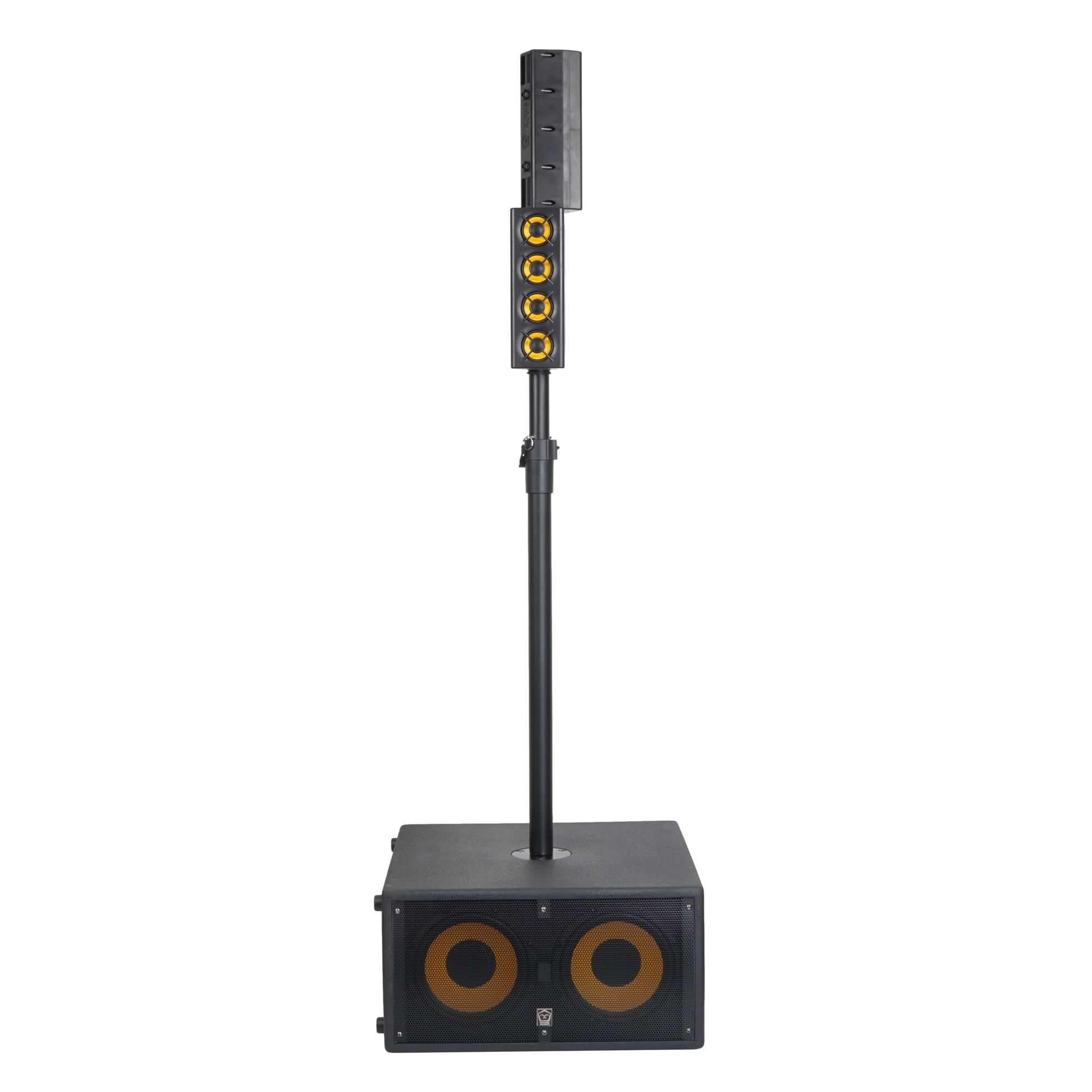

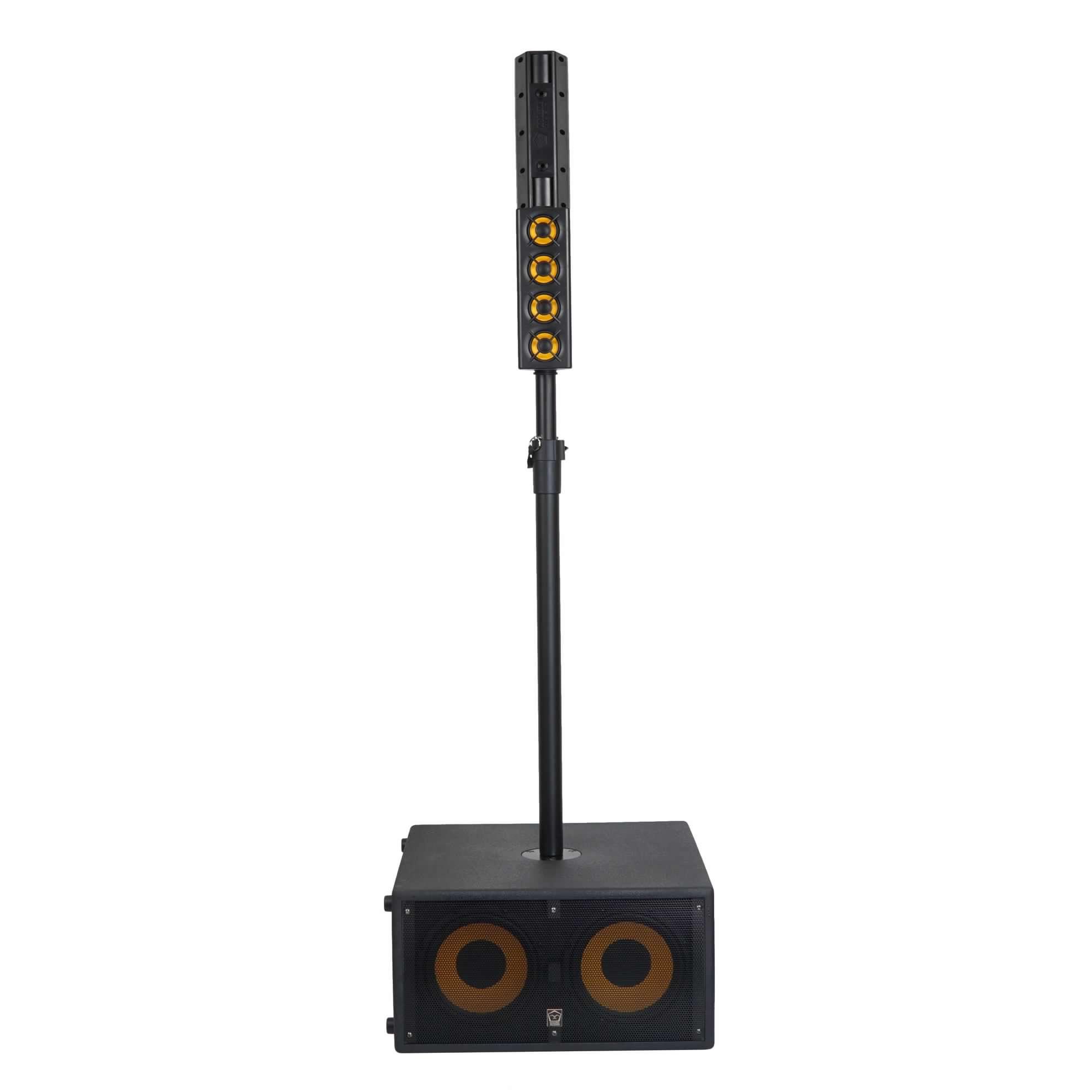

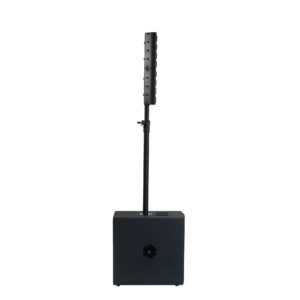

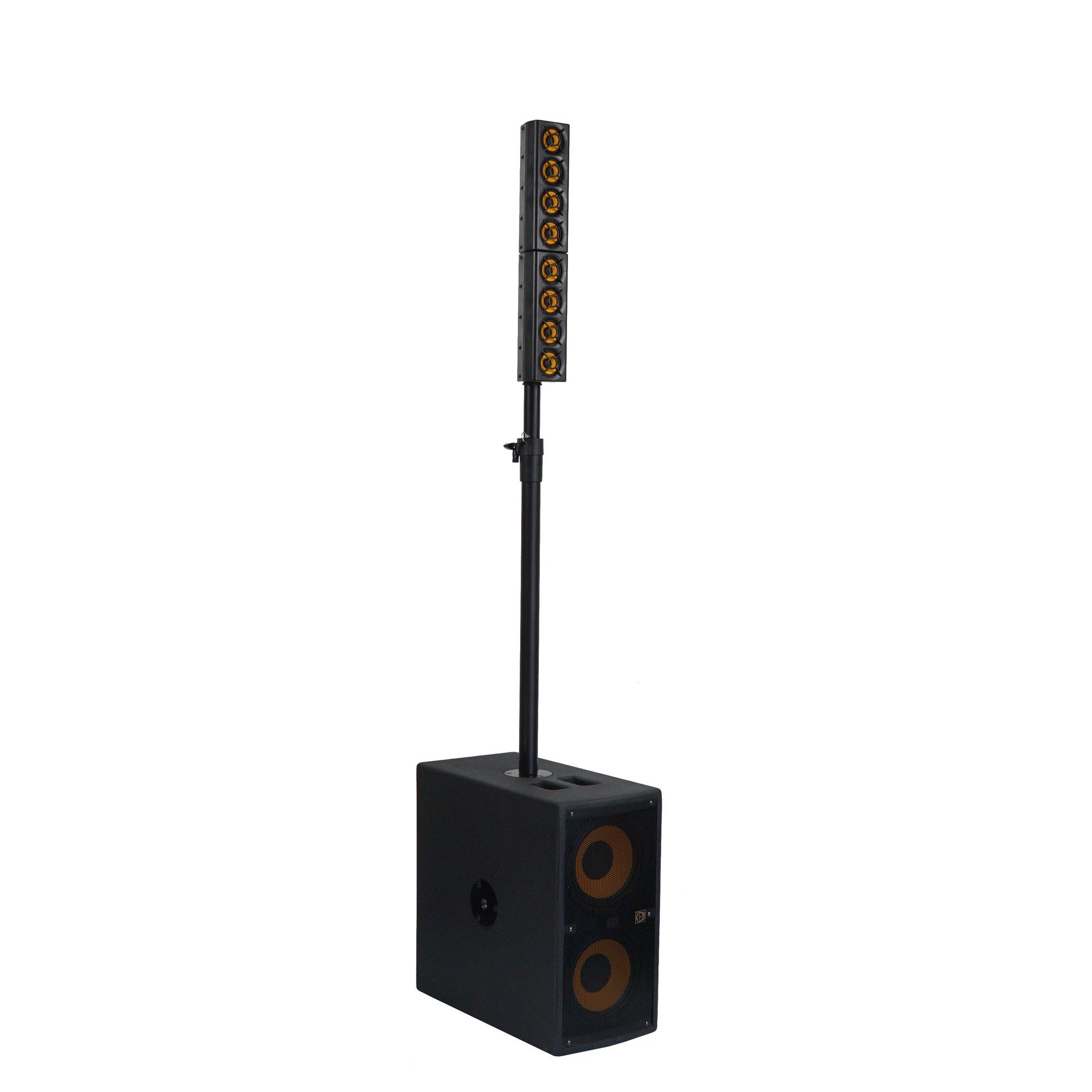

Choose the ERGO System fitting your needs, whatever the application: from small to large audiences, any kind of event or permanent installation. The satellites column design  allows to rotate its configuration up to 360°, this is important for both the audience and the players, since hearing everything greatly enhances both the performance and the listening experience.
They can also be used as personal monitors or as home desk.
Let  yourself and the audience hear your Music at its Best! Always hear everything, everywhere in the venue!

Specifications:

Additional information

POWER

WOOFER

SUBWOOFER

SPL

SIZE

SERIES

Let's play

Technical Features

MAIN FEATURES:
  • TOTAL POWER 1.400 W
  • 126 dB max SPL
  • FREQUENCY RESPONSE 50 Hz – 20 kHz
  • 4 x 2″ neodymium full-range woofer
  • 2 x 8″ subwoofer
  • Innovative DSP processor
  • Modularity, pole mountable, easy set-up and to transport

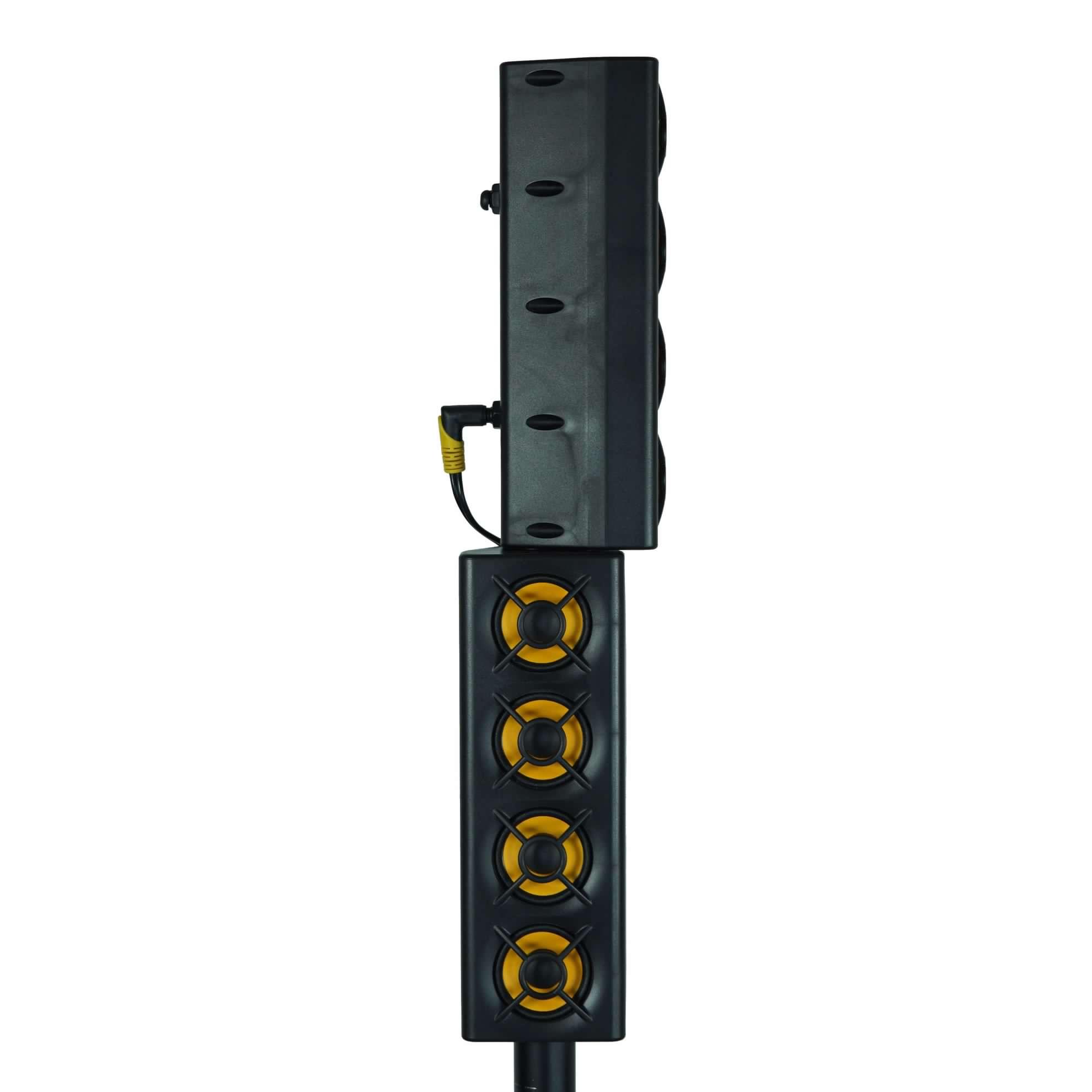

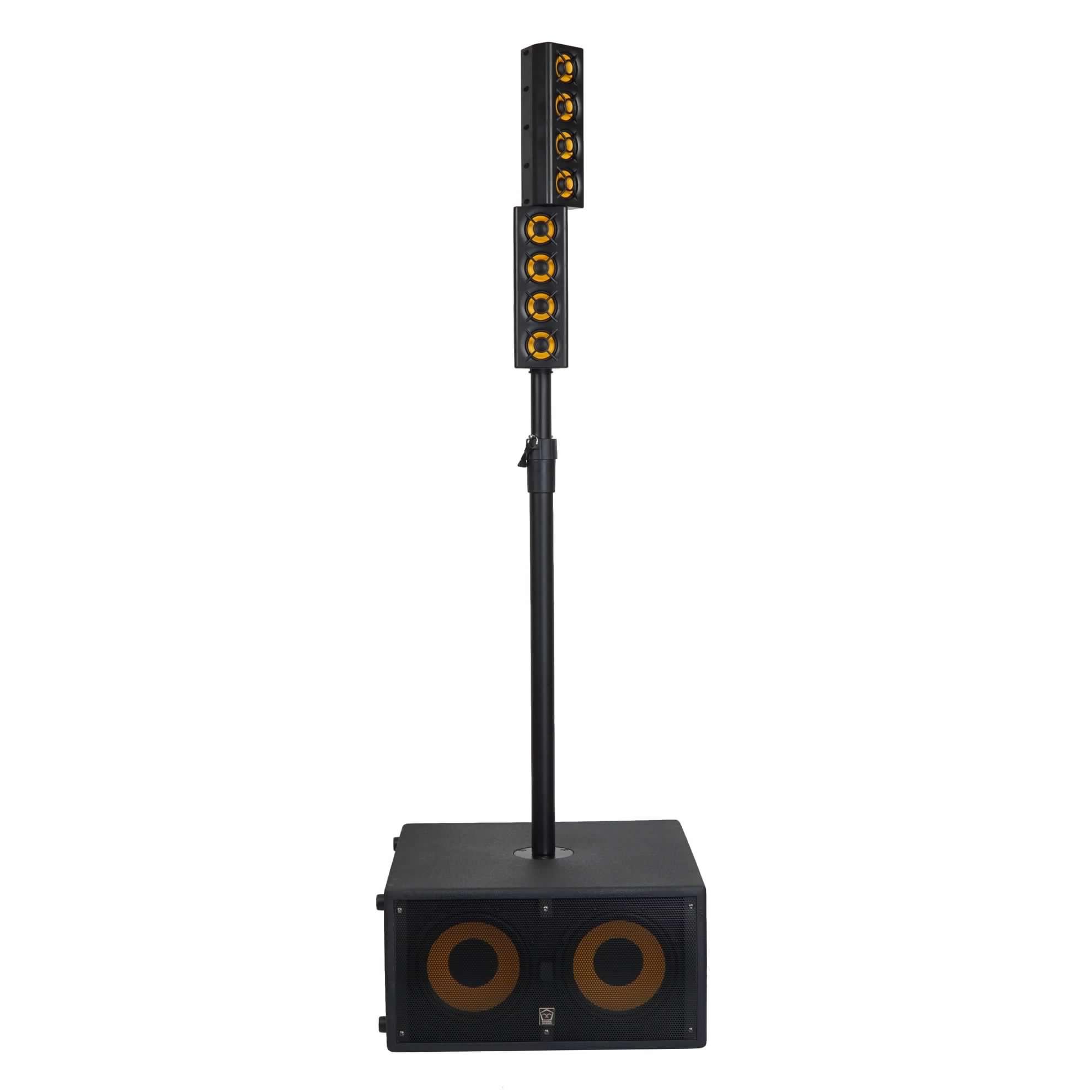

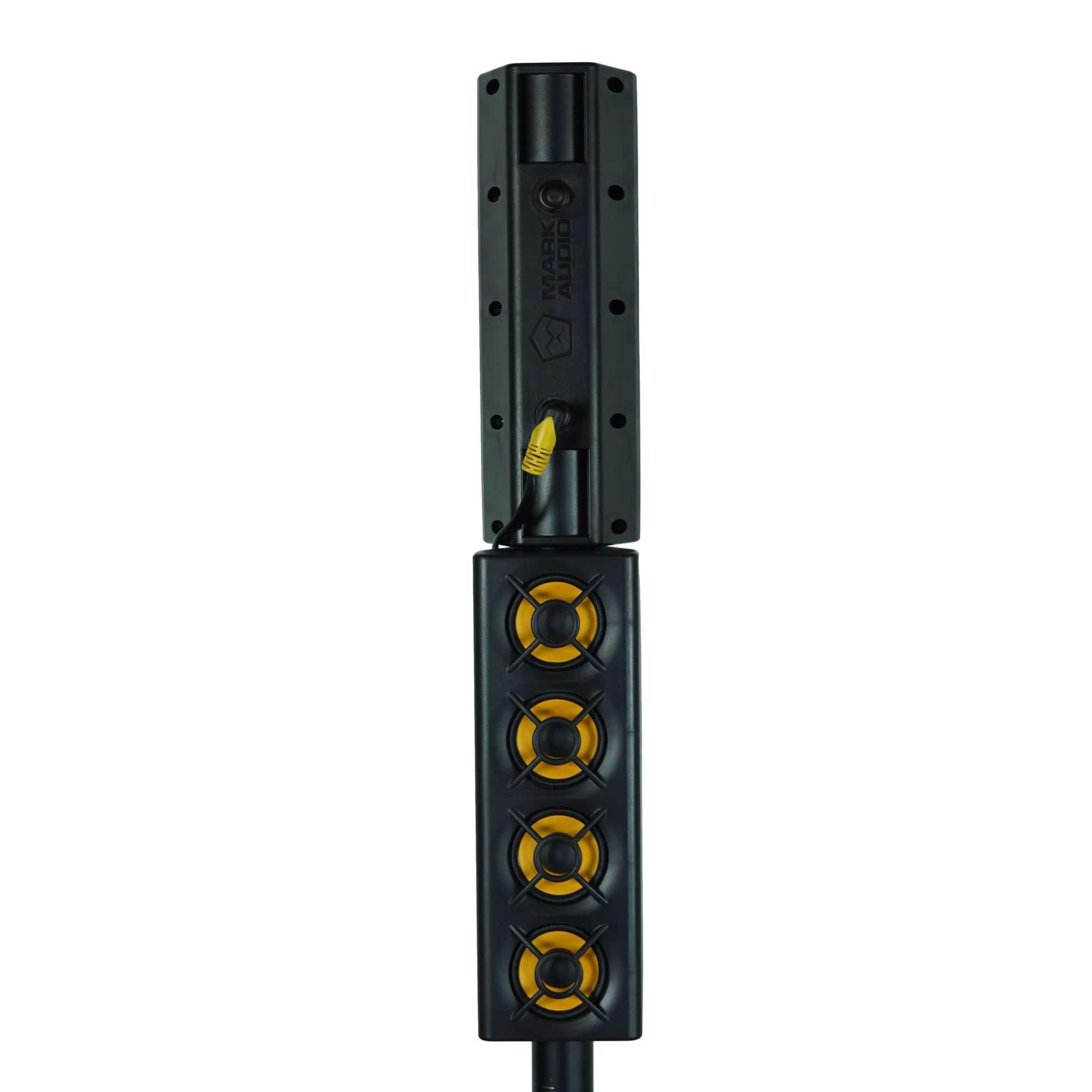

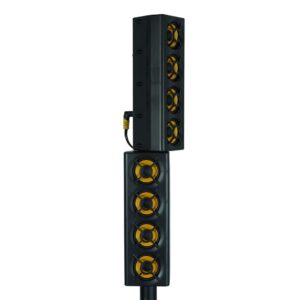

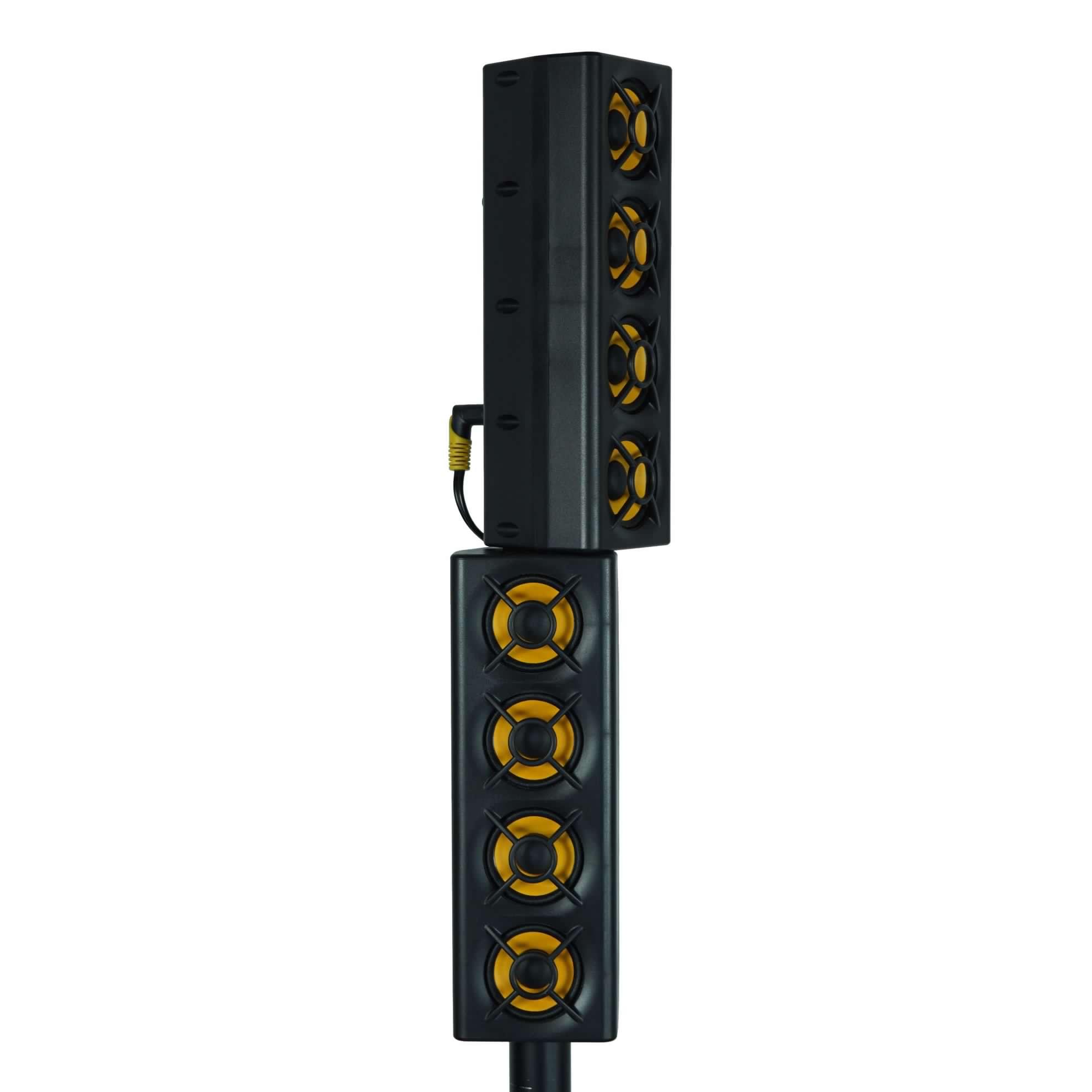

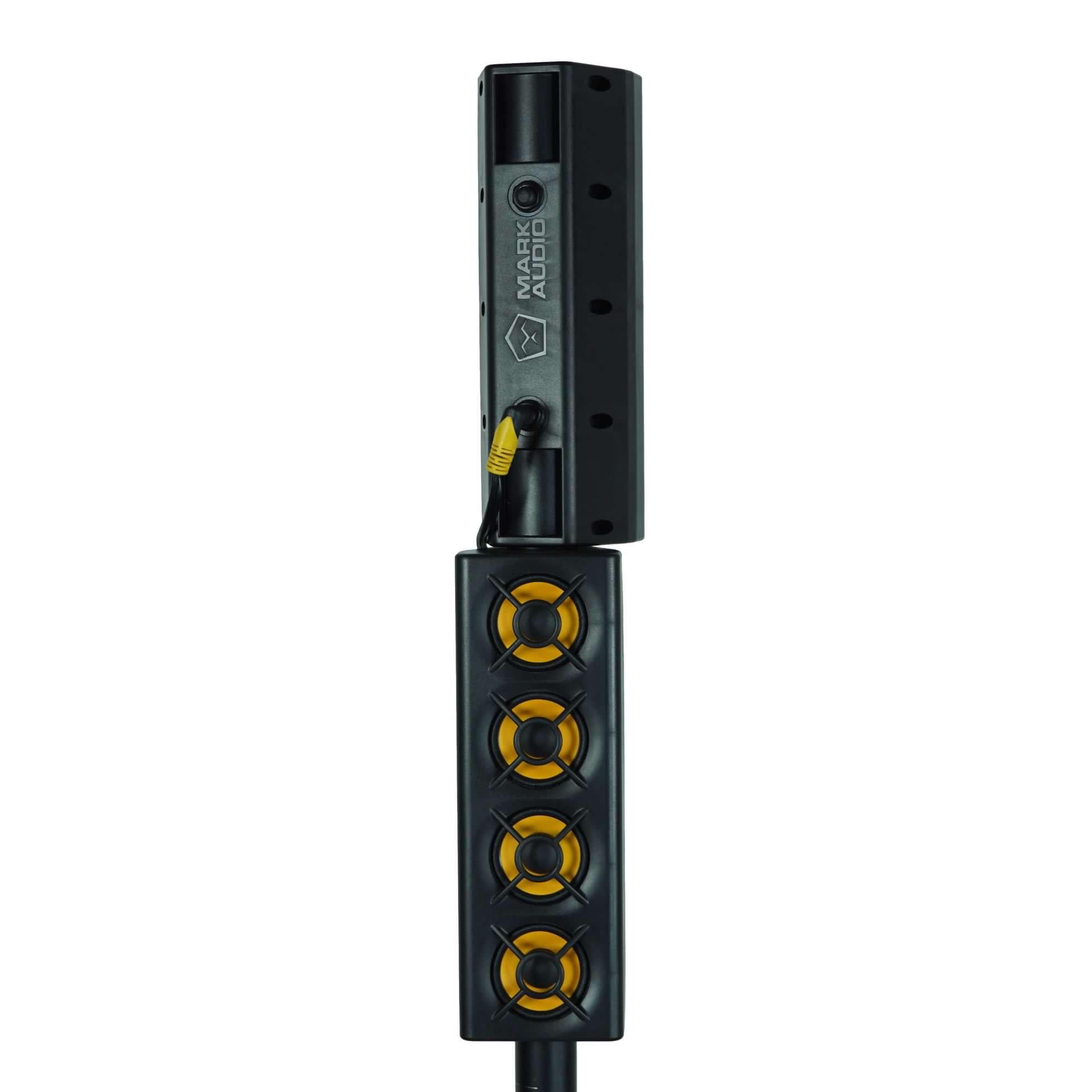

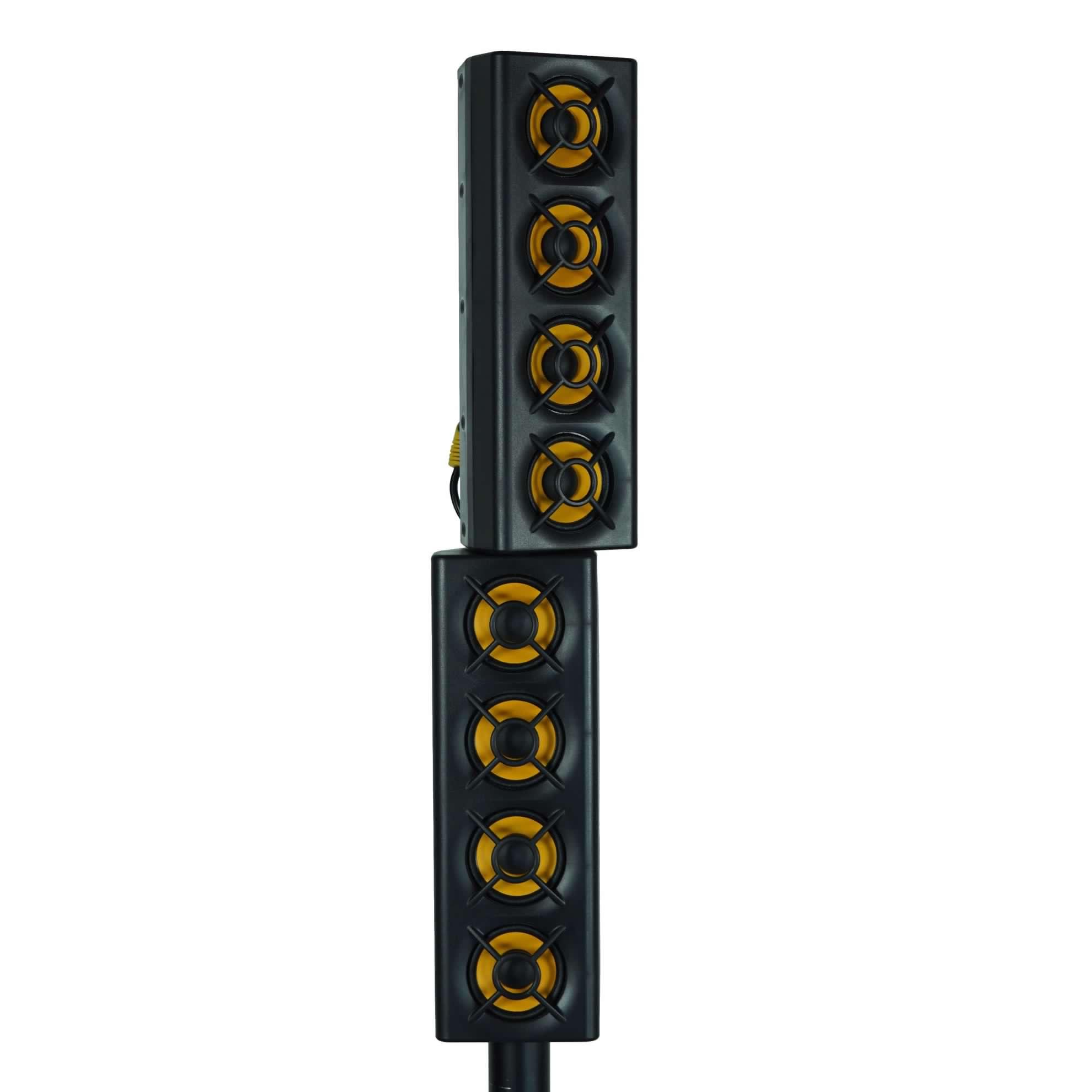

  • 360° loudspeakers rotation
MULTIPLE APPLICATIONS
  • PIANOBAR
  • BANDS
  • PERMANENT INSTALLATIONS
  • MEETING HALLS
  • HOME THEATER
ACOUSTICAL
  • FREQUENCY RESPONSE : 50 Hz – 20 Khz
  • MAX SPL : 129 dB
  • HORIZONTAL COVERAGE ANGLE : 90°
  • VERTICAL COVERAGE ANGLE : 30°

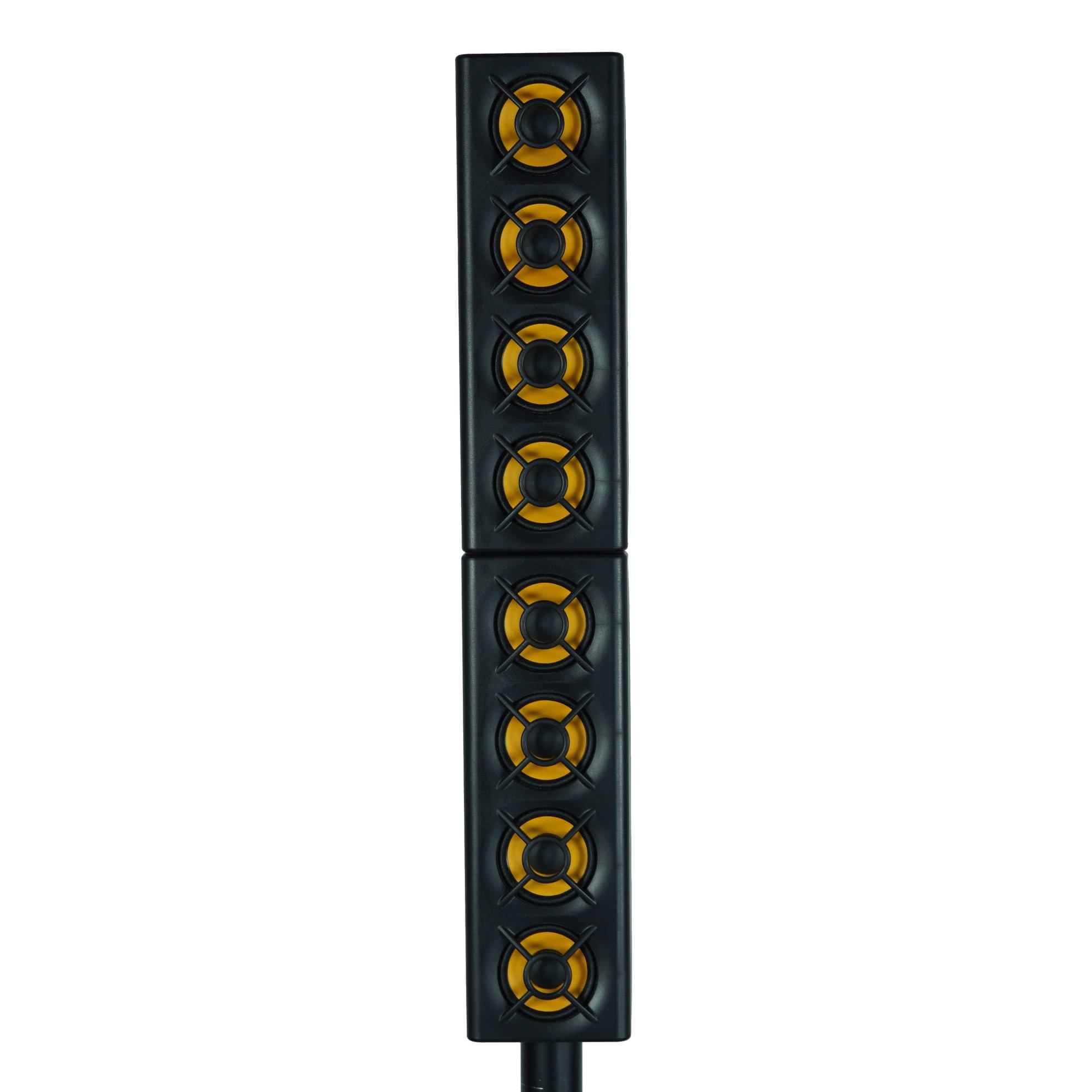

  • SATELLITES : 8 x 4”, 8 Ohm
  • SUB : 2 x 10” , 4 Ohm

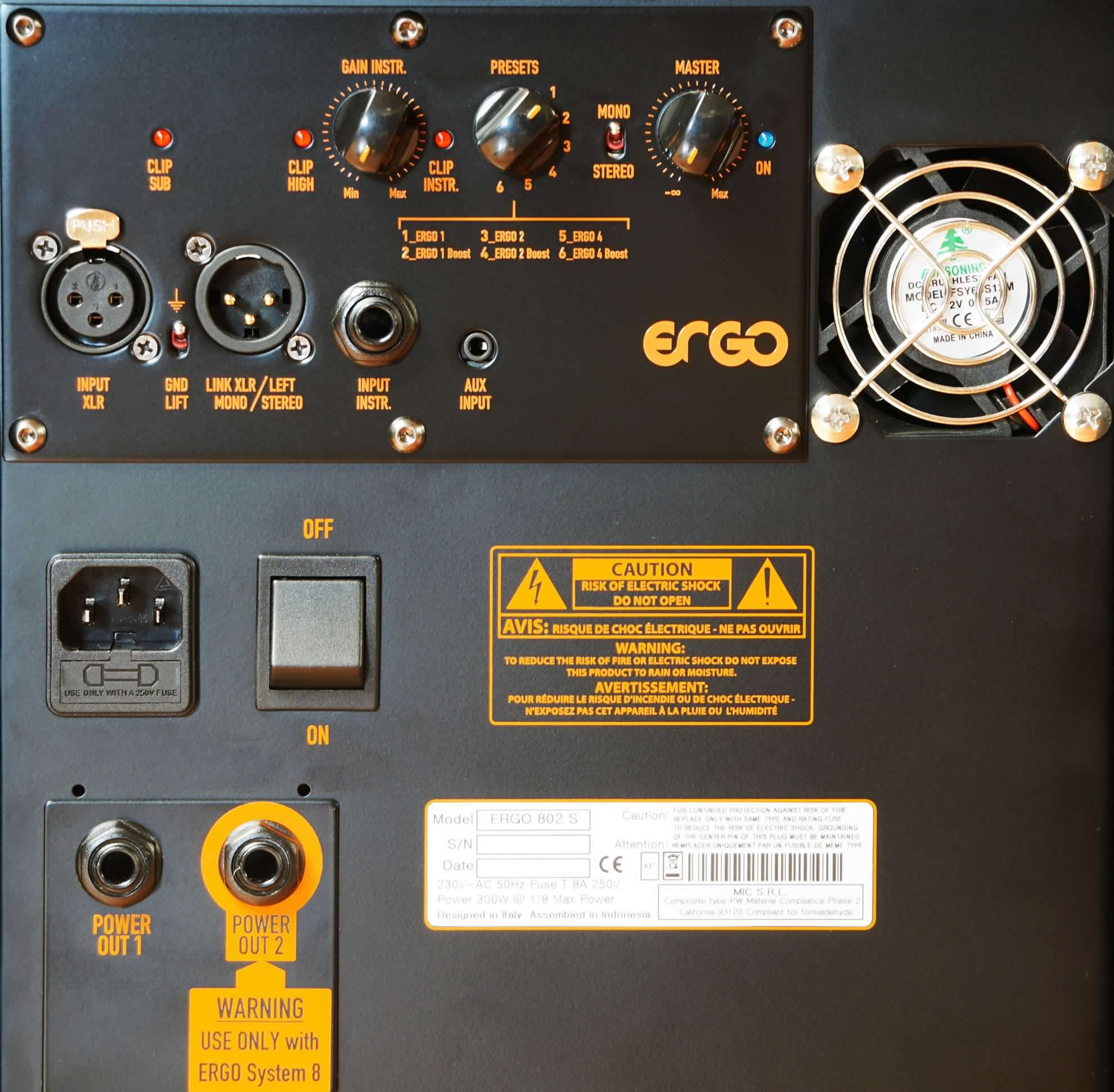

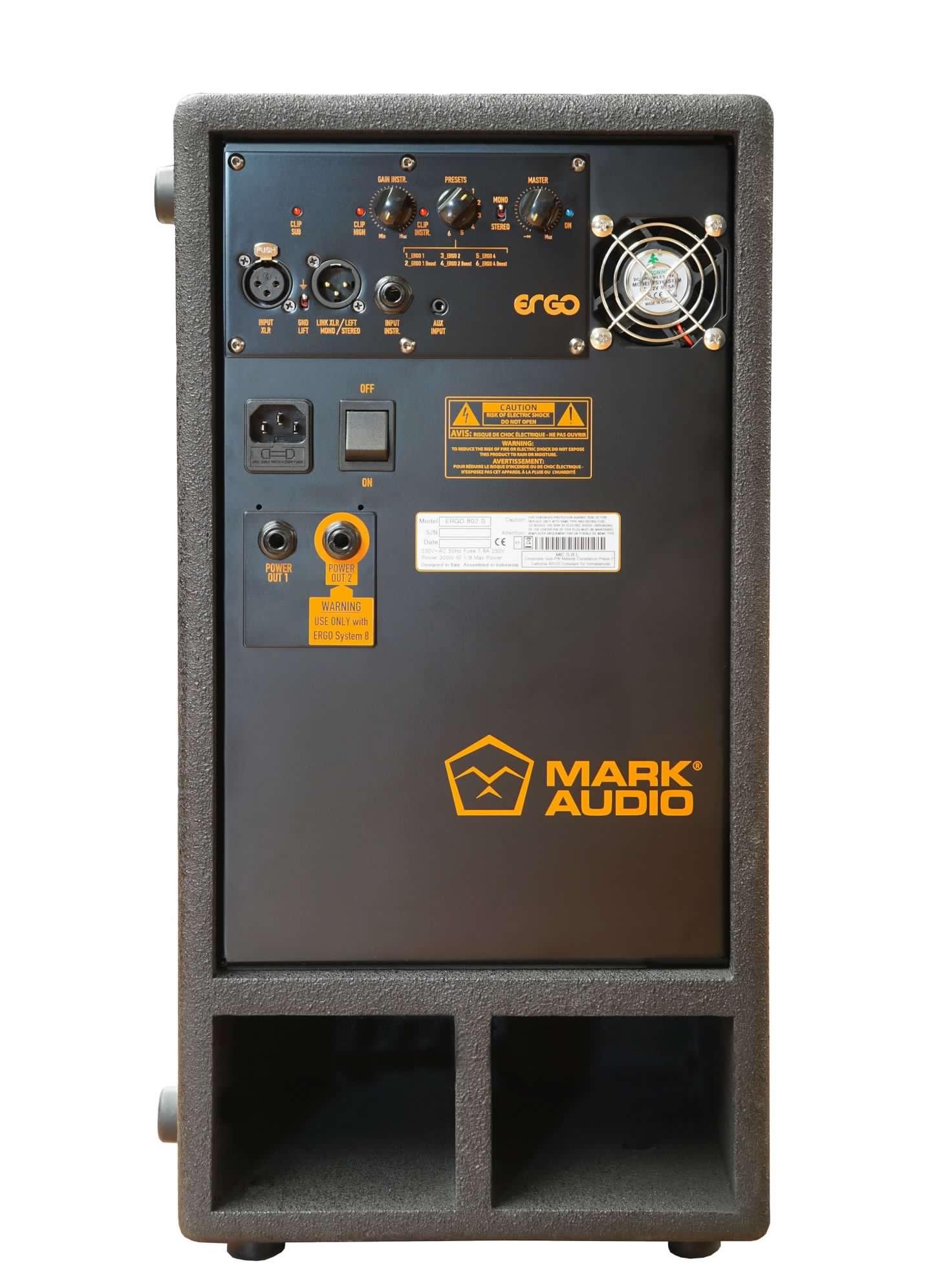

INPUT/OUTPUT
  • INPUT CONNECTORS : Jack – XLR female – AUX
  • OUTPUT CONNECTORS : XLR male
  • INPUT SENSITIVITY : -1,1 dBu (@ 1 kHz)
PROCESSOR
  • CROSSOVER FREQUENCIES : 180 Hz
  • PROTECTIONS : Thermal, rms
  • LIMITER : Soft limiter
  • CONTROLS : Volume, EQ
AMPLIFIER
  • TOTAL POWER (4ohm) : 2.000 W PEAK
  • HIGH FREQ. POWER (4ohm) : 1.000 W PEAK
  • LOW FREQ. POWER (4ohm) : 1.000 W PEAK
  • TOTAL POWER RMS (4ohm) : 1.000 W RMS
  • HIGH FREQ. POWER RMS (4ohm) : 500 W RMS
  • LOW FREQ. POWER RMS (4ohm) : 500 W RMS
  • COOLING : Convection
  • CONNECTIONS : VDE connector
CABINET
  • CABINET MATERIAL : Multiply poplar
  • HANDLES : 2 Side
  • COLOUR : Black
  • POLE MOUNT/CAP : Yes
PHYSICAL
  • SYSTEM HEIGHT (Horizontal Sub) : min 125cm (49″) / max 170cm (67”)
  • TOTAL WEIGHT : 29 kg (64 lbs)
  • SUBWOOFER WEIGHT : 23 kg (50,7 lbs)
  • SATELLITES WEIGHT : 6 kg (13,2 lbs)
  • SYSTEM DEPTH : 48cm (19”)
  • SYSTEM WIDHT : 43cm (17”)
  • SYSTEM HEIGHT (Vertical Sub) : min 143 cm (56′) / max 188 cm (74”)
ACCESSORIES

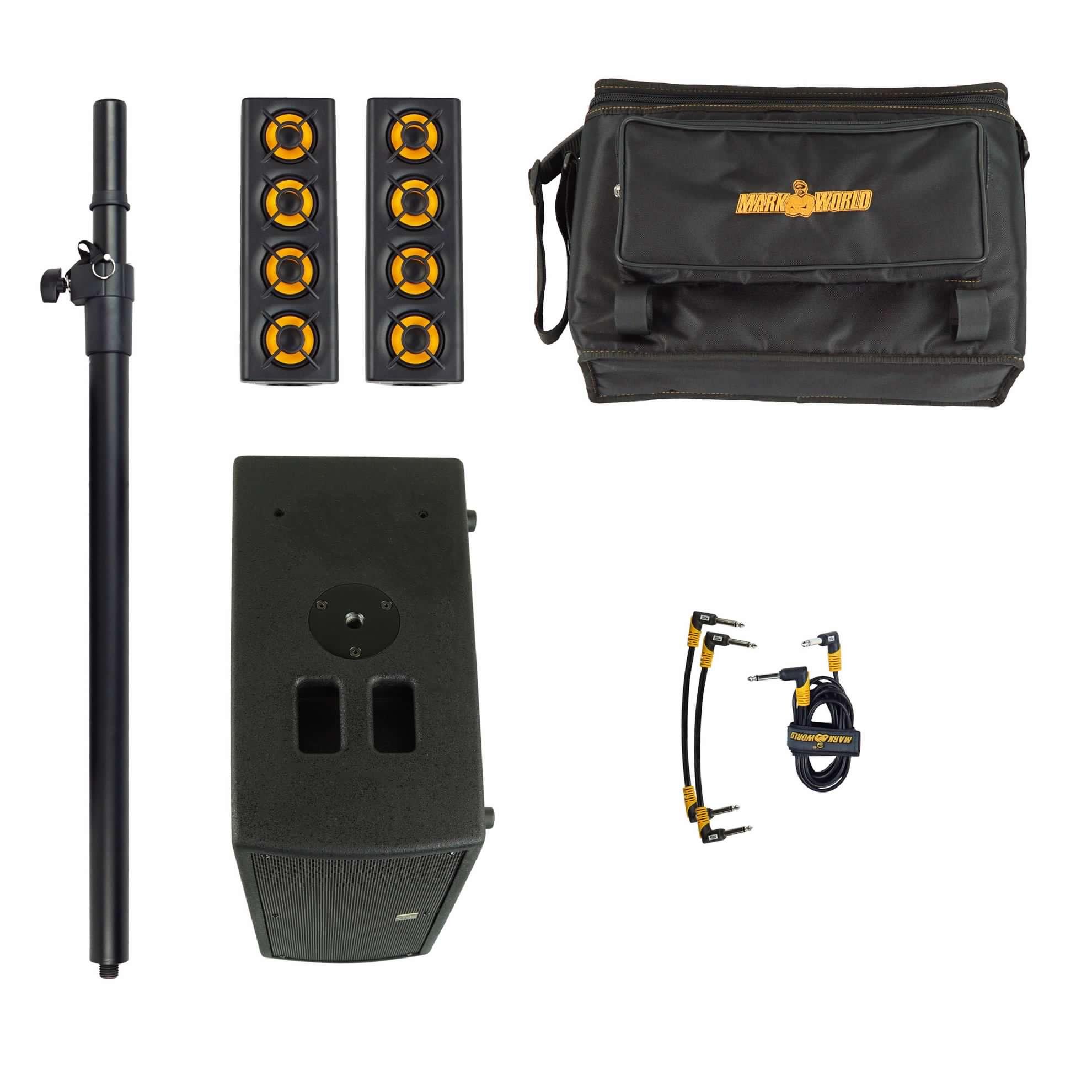

OPTIONALS : Satellites transport bag included

OPTIONALS : Subwoofer cover optional
